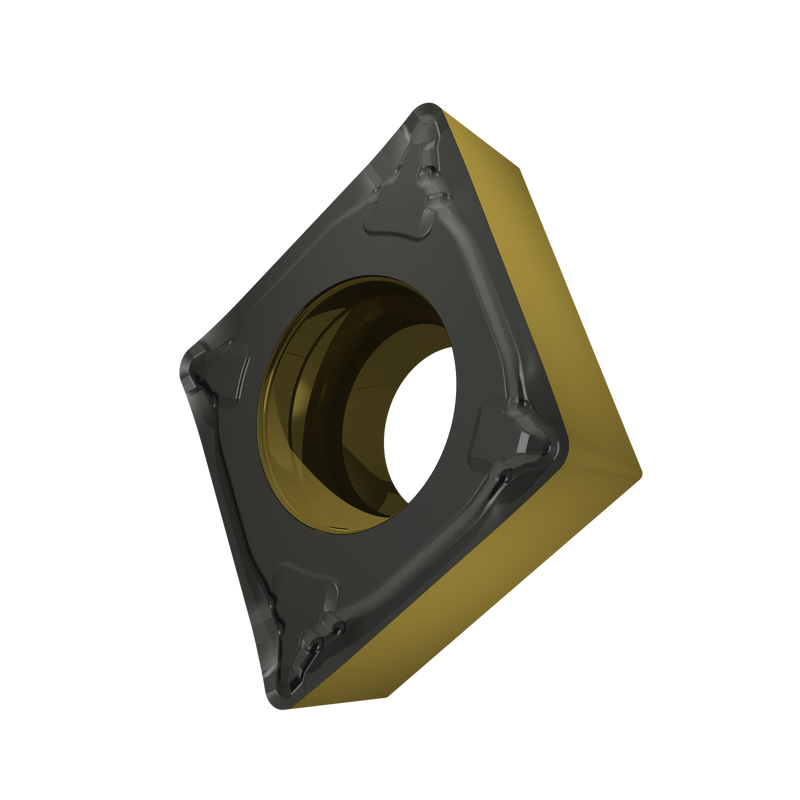

CCMT 432-UR:T5415

CCMT 432-UR:T5415

UGC DOR8717364
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.07 CAD - $17.07 CAD
$17.07 CAD
$17.07 CAD - $17.07 CAD
$17.07 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 80° avec un dépouille de 7°, diamètre du cercle inscrit de 1/2", épaisseur 3/16", rayon de pointe 1/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux UR, en nuance T5415, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10 - K25, pour l'usinage fin à lourd des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 432-UR:T5415
Product Name (ISO)CCMT 120408E-UR:T5415
GradeT5415
Chipbreaker (CBMD)VOUS
Product Number8717364
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle rhombique de 80°
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717364
EAN3603604496148
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download
CCMT 432-UR:T5415 — Line Drawing PDF Download
