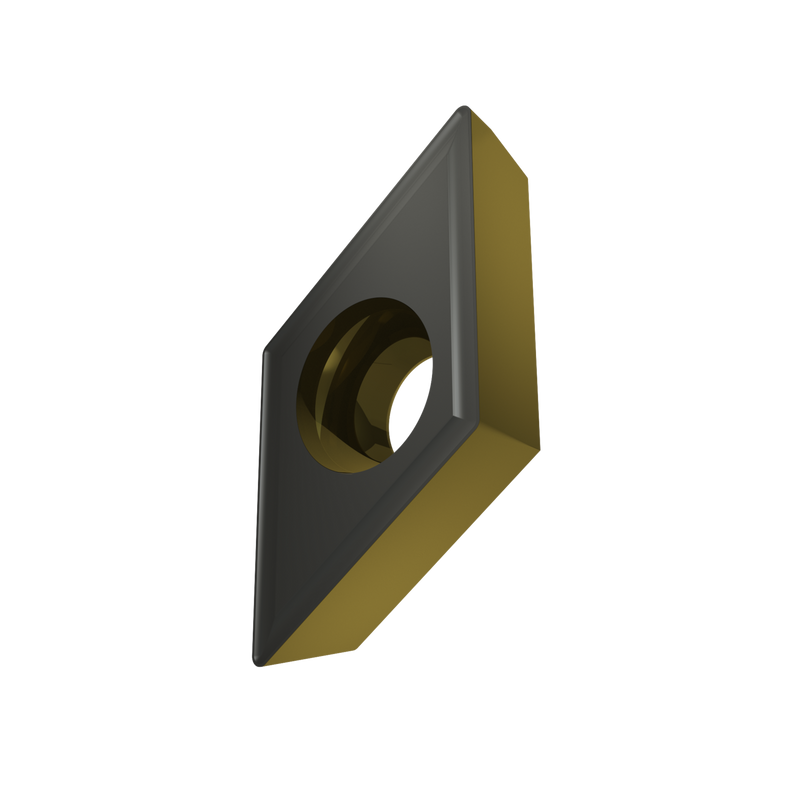

DCMT 32.51-RF:T5415

DCMT 32.51-RF:T5415

UGC DOR8717367
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.04 CAD - $16.04 CAD
$16.04 CAD
$16.04 CAD - $16.04 CAD
$16.04 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit 3/8", épaisseur 5/32", rayon de pointe 1/64" et précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux RF, en nuance T5415, un carbure WC-Co revêtu MT-CVD dans les plages ISO K10 - K25 et M10-M30, pour l'usinage fin à lourd des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMT 32.51-RF:T5415
Product Name (ISO)DCMT 11T304E-RF:T5415
GradeT5415
Chipbreaker (CBMD)RF
Product Number8717367
Product FamilyDCMT
Insert Geometry
Insert DesignDCMT
Insert Shape Code (SC)D - angle inclus rhomboïdal de 55°
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717367
EAN3603604496179
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
DCMT 32.51-RF:T5415 — Line Drawing PDF Download
