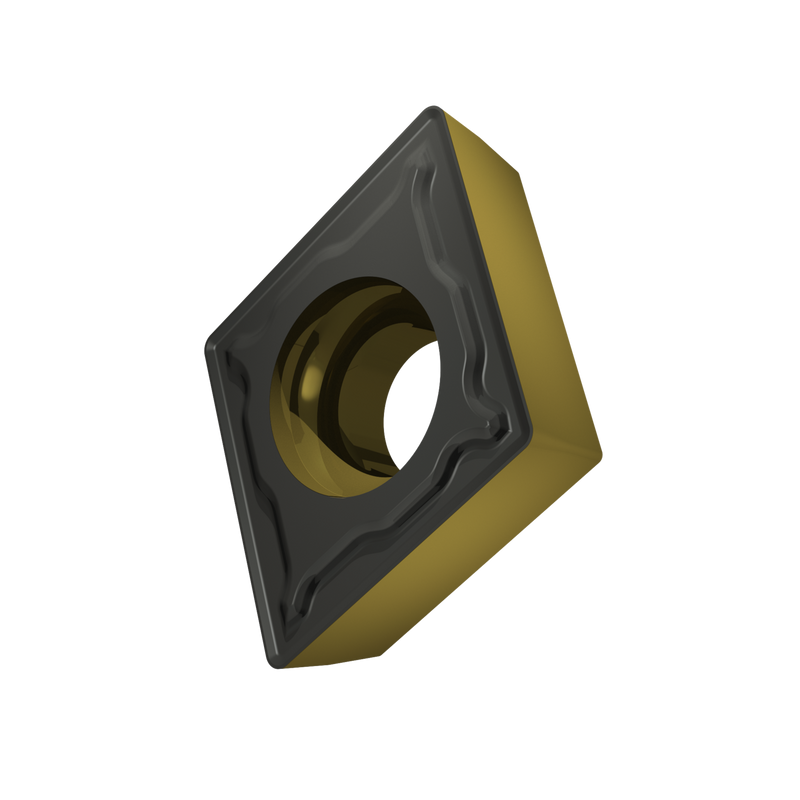

ECMT 2.521-FM2:T5415

ECMT 2.521-FM2:T5415

UGC DOR8717372
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.61 CAD - $12.61 CAD
$12.61 CAD
$12.61 CAD - $12.61 CAD
$12.61 CAD

Vendu en lots de : 10

Plaquette positive simple face à 75°, rhomboïde, dépouille de 7°, diamètre du cercle inscrit 5/16", épaisseur 1/8", rayon de bec 1/64" et précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux FM2, en nuance T5415, un carbure WC-Co revêtu MT-CVD, plage ISO K10 - K25, pour l'usinage de finition à moyen d'aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)ECMT 2.521-FM2:T5415
Product Name (ISO)CEMT 080304E-FM2:T5415
GradeT5415
Chipbreaker (CBMD)FM2
Product Number8717372
Product FamilyCEMT
Insert Geometry
Insert DesignCEMT
Insert Shape Code (SC)F - angle de 75° entre les côtés
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717372
EAN3603604496223
Material Group Suitability
P — Steel and Cast Steel Usage possible
K — Cast Iron Usage principal
File Type Download
ECMT 2.521-FM2:T5415 — Line Drawing PDF Download
