RCMT 1606MOS-RM3:T5415

RCMT 1606MOS-RM3:T5415

UGC DOR8717373
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.43 CAD - $27.43 CAD
$27.43 CAD
$27.43 CAD - $27.43 CAD
$27.43 CAD

Vendu en lots de : 10

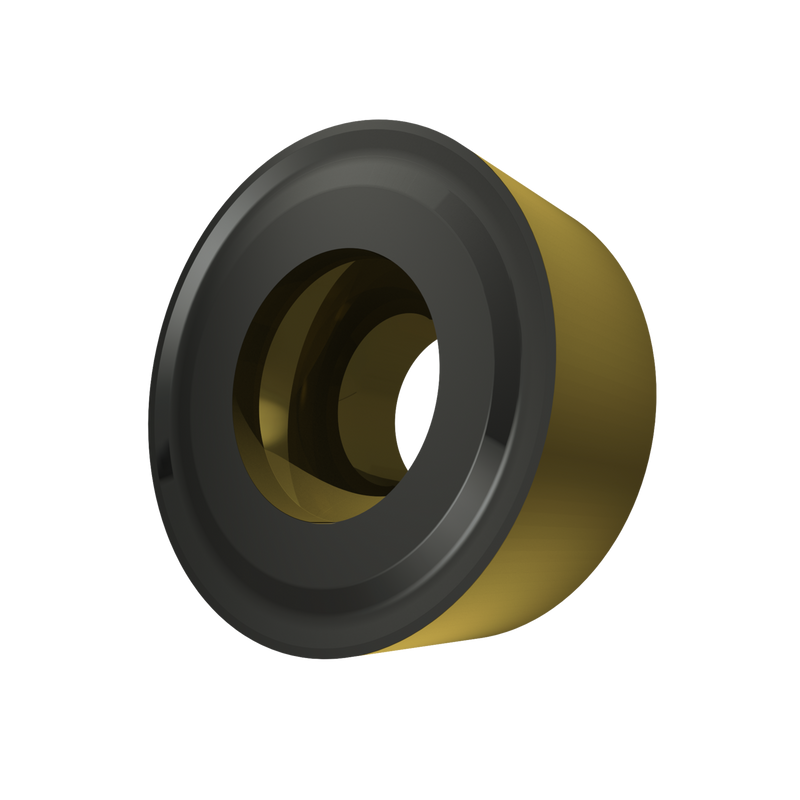

Plaquette de tournage positive simple face, ronde, avec un dépouille de 7°, un diamètre de 16 mm, une épaisseur de 6,35 mm, une précision d'indexation selon la classe de tolérance ISO-M, brise-copeaux RM3 avec arêtes de coupe arrondies, en nuance T5415, un carbure WC-Co revêtu MT-CVD. pour l'usinage des fontes, de la finition à l'ébauche

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 1606MOS-RM3:T5415
GradeT5415
Chipbreaker (CBMD)RM3
Product Number8717373
Product FamilyRCMT
Insert Geometry
Insert DesignCRMT
Insert Shape Code (SC)R - tour
Inscribed Circle Dia. — in (IC)0.63"
Inscribed Circle Dia. — mm (IC)16.0 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717373
EAN3603604496230
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
RCMT 1606MOS-RM3:T5415 — Line Drawing PDF Download
