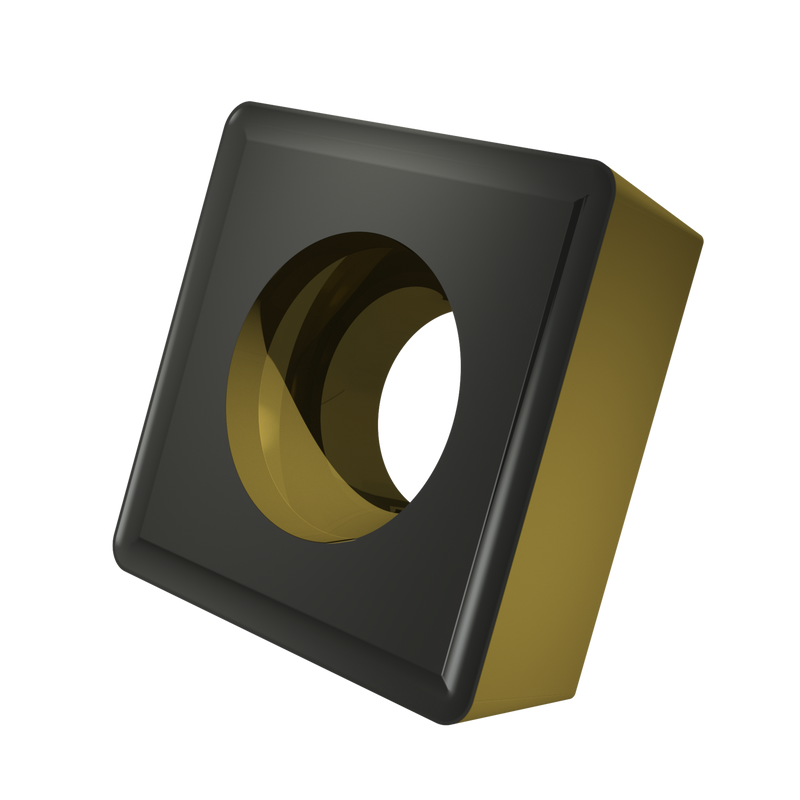

SCMT 432-RF:T5415

SCMT 432-RF:T5415

UGC DOR8717376
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.54 CAD - $19.54 CAD
$19.54 CAD
$19.54 CAD - $19.54 CAD
$19.54 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, carrée avec un angle de dépouille de 7°, diamètre du cercle inscrit de 1/2", épaisseur de 3/16", rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux RF, en nuance T5415, un carbure WC-Co revêtu MT-CVD dans les plages ISO K10 - K25 et M10-M30, pour l'usinage du dégrossissage à la finition de fontes et de fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)SCMT 432-RF:T5415
Product Name (ISO)SCMT 120408E-RF:T5415
GradeT5415
Chipbreaker (CBMD)RF
Product Number8717376
Product FamilySCMT
Insert Geometry
Insert DesignSCMT
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717376
EAN3603604496261
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
SCMT 432-RF:T5415 — Line Drawing PDF Download
