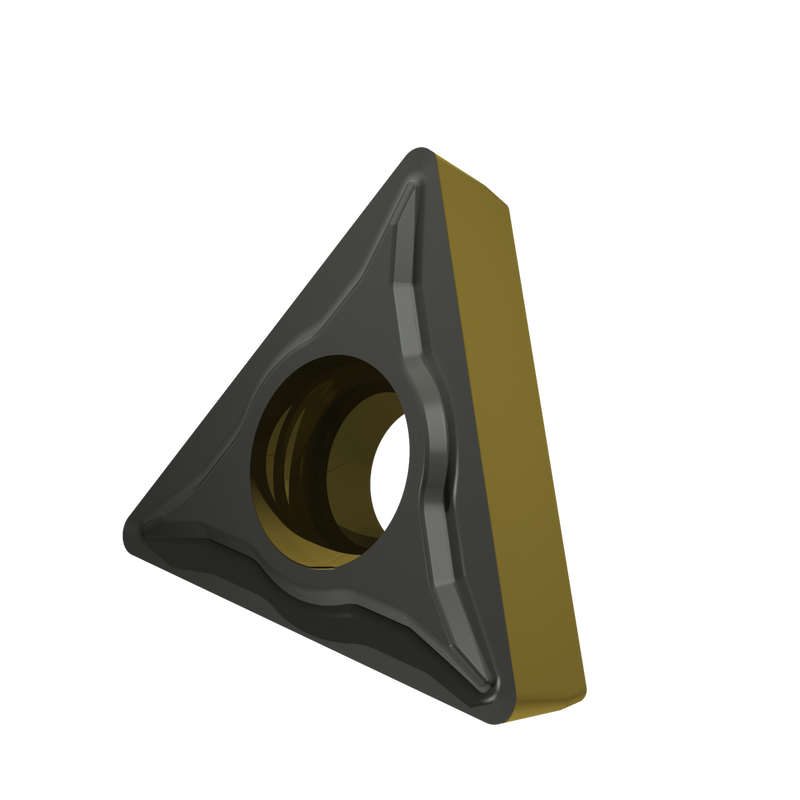

TCMT 1.81.51-FF2:T5415

TCMT 1.81.51-FF2:T5415

UGC DOR8717380
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.36 CAD - $9.36 CAD
$9.36 CAD
$9.36 CAD - $9.36 CAD
$9.36 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 7/32, épaisseur de 3/32", rayon de pointe de 1/64" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux FF2, en nuance T5415, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10 - K25, pour l'usinage fin à moyen des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)TCMT 1.81.51-FF2:T5415
Product Name (ISO)TCMT 090204E-FF2:T5415
GradeT5415
Chipbreaker (CBMD)FF2
Product Number8717380
Product FamilyTCMT
Insert Geometry
Insert DesignTCMT
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.219"
Inscribed Circle Dia. — mm (IC)5.56 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717380
EAN3603604496308
Material Group Suitability
P — Steel and Cast Steel Usage possible
K — Cast Iron Usage principal
File Type Download
TCMT 1.81.51-FF2:T5415 — Line Drawing PDF Download
