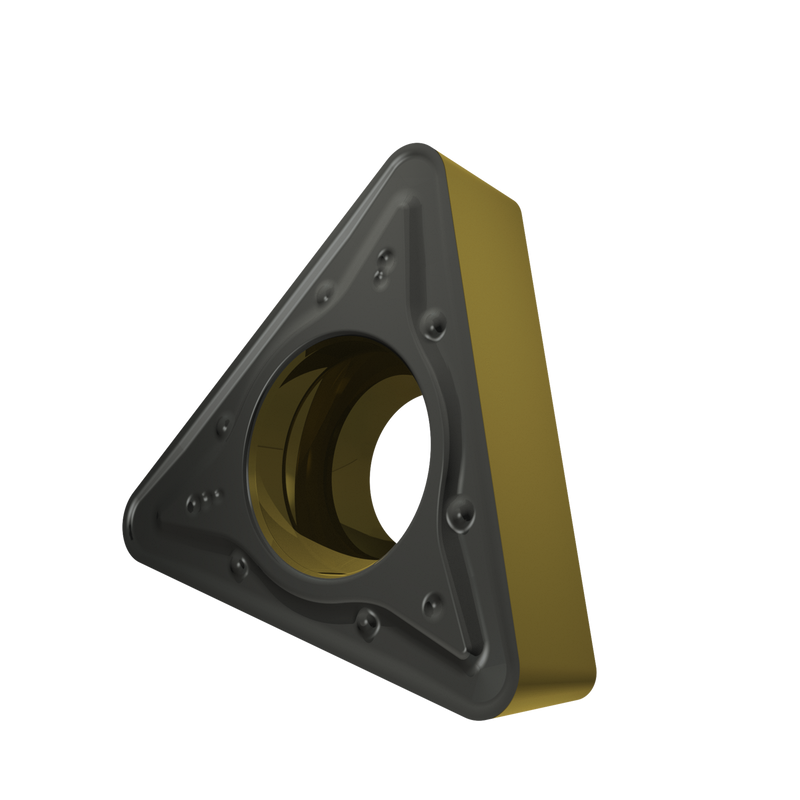

TCMT 32.53-RM:T5415

TCMT 32.53-RM:T5415

UGC DOR8717383
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.61 CAD - $14.61 CAD
$14.61 CAD
$14.61 CAD - $14.61 CAD
$14.61 CAD

Vendu en lots de : 10

Plaquette positive simple face pour le tournage, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 3/8", épaisseur de 5/32", rayon de pointe de 3/64" et précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux RM, en nuance T5415, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10 - K25, pour l'usinage fin à lourd de fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)TCMT 32.53-RM:T5415
Product Name (ISO)TCMT 16T312E-RM:T5415
GradeT5415
Chipbreaker (CBMD)RM
Product Number8717383
Product FamilyCMTC
Insert Geometry
Insert DesignCTMC
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717383
EAN3603604496339
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Usage possible
File Type Download
TCMT 32.53-RM:T5415 — Line Drawing PDF Download
