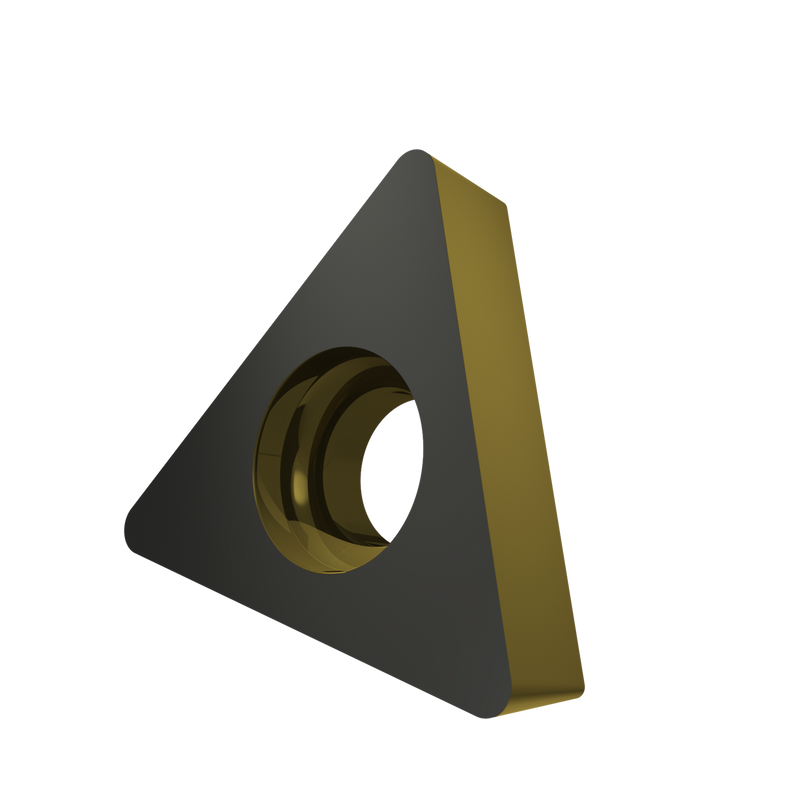

TCMW 32.52:T5415

TCMW 32.52:T5415

UGC DOR8717384
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.61 CAD - $14.61 CAD
$14.61 CAD
$14.61 CAD - $14.61 CAD
$14.61 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 3/8", épaisseur de 5/32", rayon de bec de 1/32" et précision d'indexage selon la classe de tolérance ISO M, en nuance T5415, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10-K25, pour l'usinage de finition et semi-finition de fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)TCMW 32.52:T5415
Product Name (ISO)TCMW 16T308:T5415
GradeT5415
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8717384
Product FamilyCMTT
Insert Geometry
Insert DesignTCMO
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.0315"
Corner Radius — mm (RE)0.8 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717384
EAN3603604496346
Material Group Suitability
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
TCMW 32.52:T5415 — Line Drawing PDF Download
