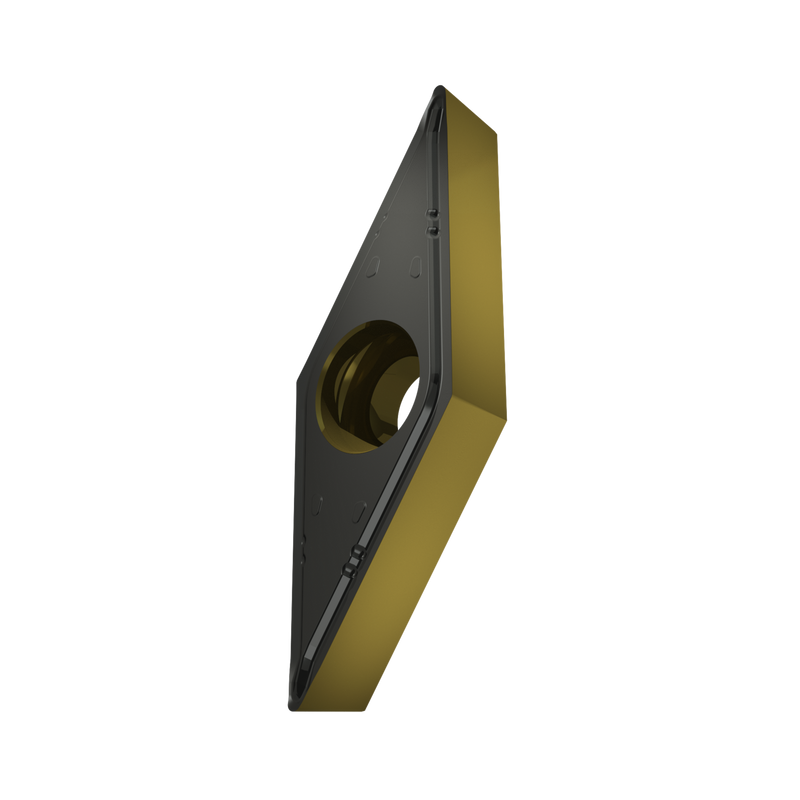

VBMT 331-UR:T5415

VBMT 331-UR:T5415

UGC DOR8717386
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.86 CAD - $22.86 CAD
$22.86 CAD
$22.86 CAD - $22.86 CAD
$22.86 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 35° avec dépouille 5°, diamètre du cercle inscrit 3/8", épaisseur 3/16", rayon de bec 1/64" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux UR, en nuance T5415, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10 - K25, pour l'usinage fin à lourd de fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)VBMT 331-UR:T5415
Product Name (ISO)VBMT 160404E-UR:T5415
GradeT5415
Chipbreaker (CBMD)VOUS
Product Number8717386
Product FamilyVBMT
Insert Geometry
Insert DesignVBMT
Insert Shape Code (SC)V - angle d'ouverture 35°
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717386
EAN3603604496360
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download
VBMT 331-UR:T5415 — Line Drawing PDF Download
