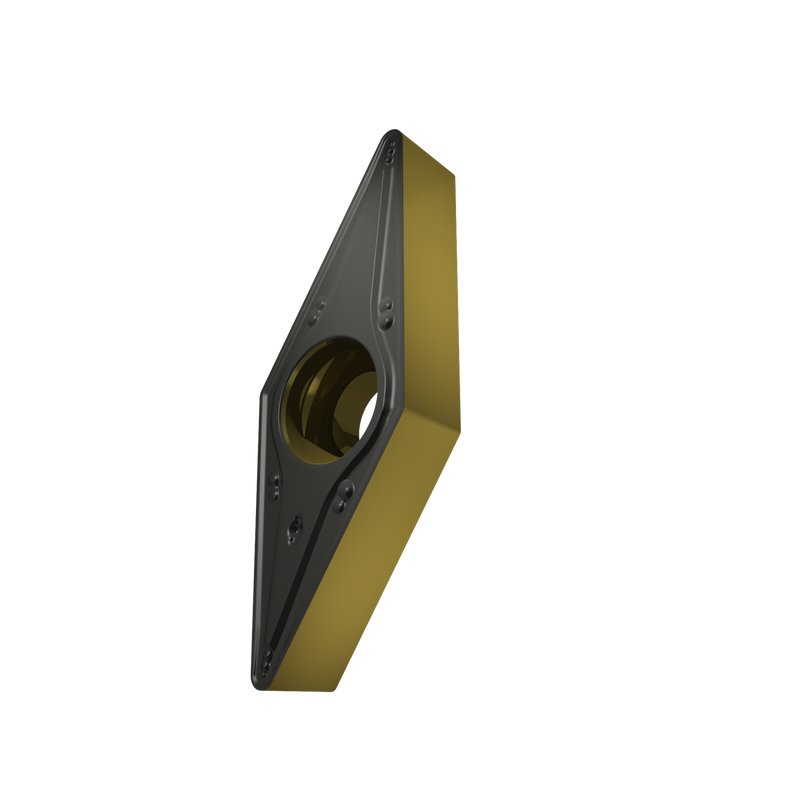

VBMT 332-RM:T5415

VBMT 332-RM:T5415

UGC DOR8717387
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.86 CAD - $22.86 CAD
$22.86 CAD
$22.86 CAD - $22.86 CAD
$22.86 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïdale à 35° avec dépouille de 5°, diamètre du cercle inscrit de 3/8", épaisseur de 3/16", rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux RM, en nuance T5415, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10 - K25, pour l'usinage fin à lourd des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)VBMT 332-RM:T5415
Product Name (ISO)VBMT 160408E-RM:T5415
GradeT5415
Chipbreaker (CBMD)RM
Product Number8717387
Product FamilyBVMT
Insert Geometry
Insert DesignVBMT
Insert Shape Code (SC)V - angle inclus rhombique 35°
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717387
EAN3603604496377
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
VBMT 332-RM:T5415 — Line Drawing PDF Download
