VCGT 2.521-FF2:T5415

VCGT 2.521-FF2:T5415

UGC DOR8717389
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.21 CAD - $20.21 CAD
$20.21 CAD
$20.21 CAD - $20.21 CAD
$20.21 CAD

Vendu en lots de : 10

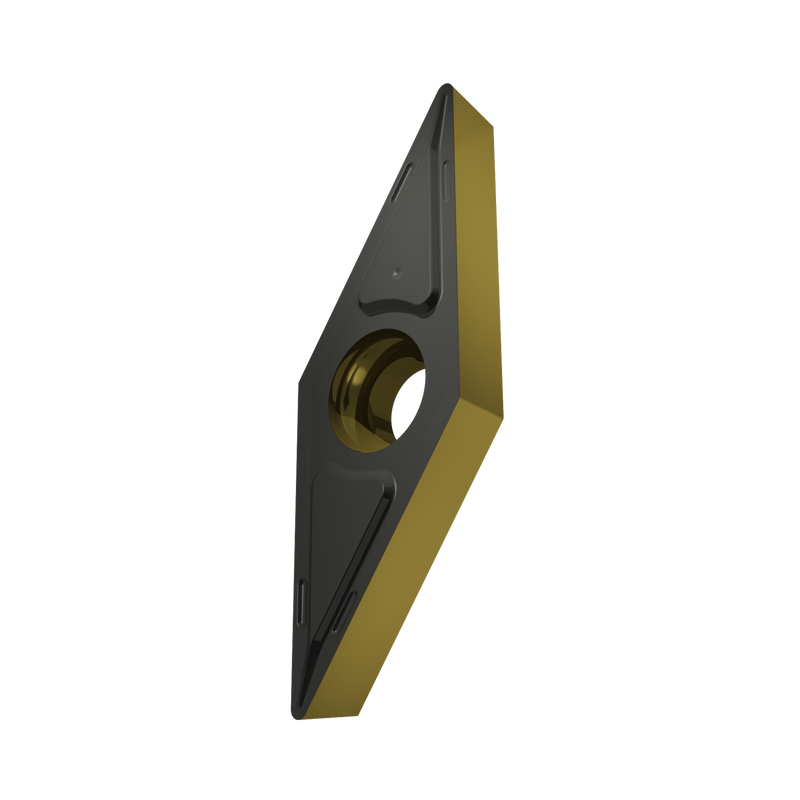

Plaquette de tournage positive simple face, rhomboïde à 35° avec dépouille à 7°, diamètre du cercle inscrit de 5/16", épaisseur de 1/8", rayon de bec de 1/64" et précision d'indexage selon la classe de tolérance ISO G, brise-copeaux FF2, en nuance T5415, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10 - K25, pour l'usinage fin à moyen de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 2.521-FF2:T5415
Product Name (ISO)VCGT 130304E-FF2:T5415
GradeT5415
Chipbreaker (CBMD)FF2
Product Number8717389
Product FamilyVCGT
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - angle ouvert de 35°
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717389
EAN3603604496391
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download
VCGT 2.521-FF2:T5415 — Line Drawing PDF Download
