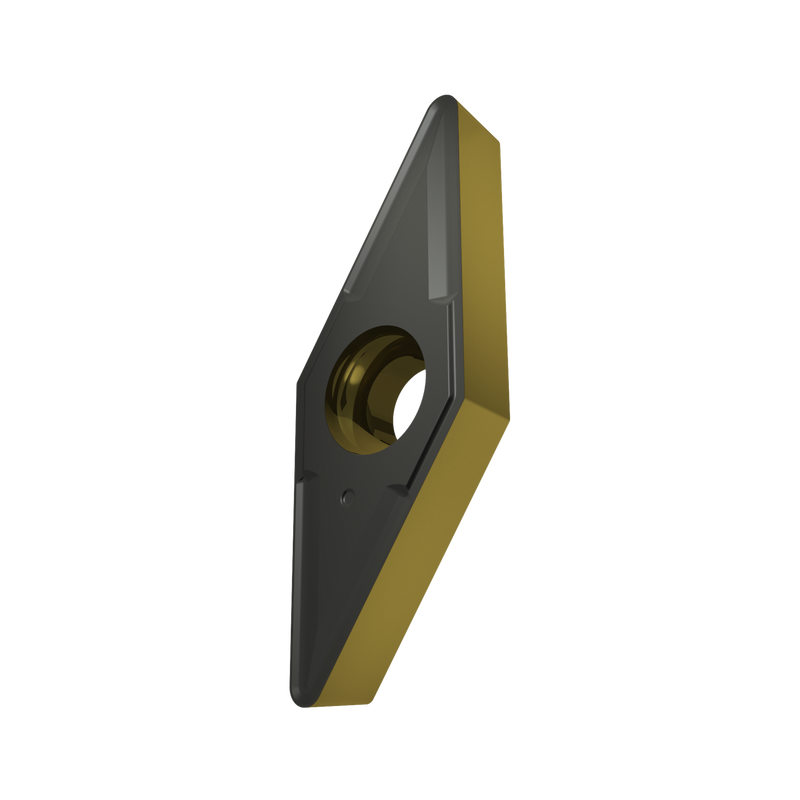

VCGT 2.522-NF2:T5415

VCGT 2.522-NF2:T5415

UGC DOR8717390
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.21 CAD - $20.21 CAD
$20.21 CAD
$20.21 CAD - $20.21 CAD
$20.21 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit de 5/16", épaisseur de 1/8", rayon de bec de 1/32" et précision d'indexage selon la classe de tolérance ISO G, brise-copeaux NF2, en nuance T5415, un carbure WC-Co revêtu MT-CVD. Pour usinage de finition à moyen

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 2.522-NF2:T5415
Product Name (ISO)VCGT 130308E-NF2:T5415
GradeT5415
Chipbreaker (CBMD)NF2
Product Number8717390
Product FamilyVCGT
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - angle d'ouverture de 35°
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717390
EAN3603604496407
Material Group Suitability
P — Steel and Cast Steel Usage possible
K — Cast Iron Utilisation possible
File Type Download
VCGT 2.522-NF2:T5415 — Line Drawing PDF Download
