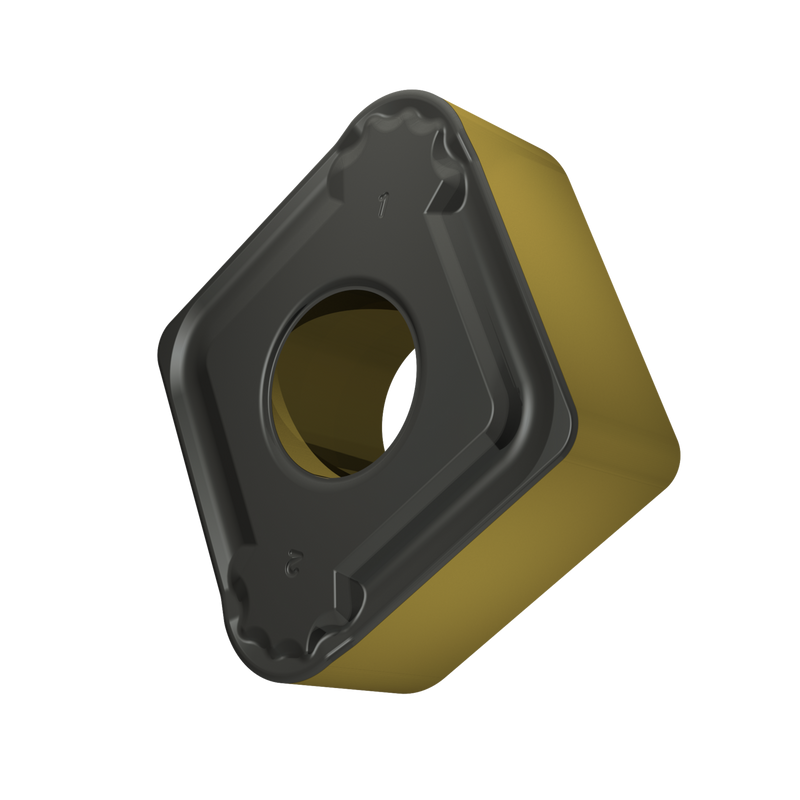

CNMX 190740SN-RF:T5415

CNMX 190740SN-RF:T5415

UGC DOR8717541
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.93 CAD - $37.93 CAD
$37.93 CAD
$37.93 CAD - $37.93 CAD
$37.93 CAD

Vendu en lots de : 10

Plaquette négative spéciale, rhomboïde à 80° avec diamètre de cercle inscrit de 19,05 mm, épaisseur de 7,94 mm, rayon de bec de 4 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux RF avec arêtes de coupe arrondies avec facette, en nuance T5415, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10 - K25, pour l'usinage lourd à moyen de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CNMX 190740SN-RF:T5415
GradeT5415
Chipbreaker (CBMD)RF
Product Number8717541
Product FamilyCNMX 19
Insert Geometry
Insert DesignCNMX 19
Insert Shape Code (SC)C - angle inclus rhombique 80°
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Corner Radius — in (RE)0.157"
Corner Radius — mm (RE)4 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717541
EAN3603604496414
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
CNMX 190740SN-RF:T5415 — Line Drawing PDF Download
