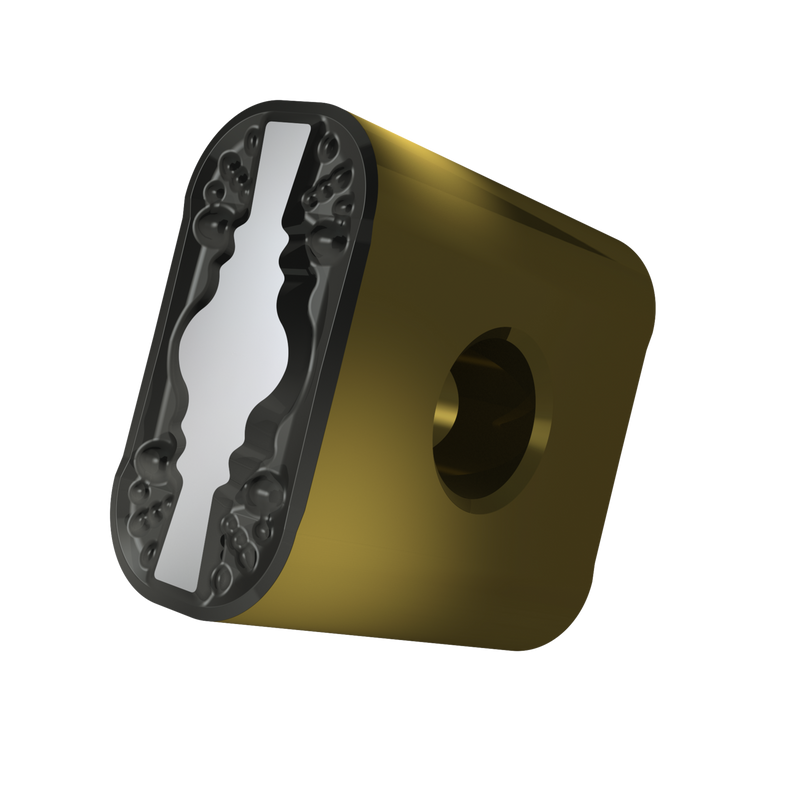

LNMX 191940SN-RR2:T5415

LNMX 191940SN-RR2:T5415

UGC DOR8717542
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$51.50 CAD - $51.50 CAD
$51.50 CAD
$51.50 CAD - $51.50 CAD
$51.50 CAD

Vendu en lots de : 10

Plaquette de tournage négative de conception spéciale, rectangulaire avec une longueur d'arête principale de 19,05 mm, rayon de pointe de 4 mm, précision d'indexation selon la classe de tolérance ISO-M, brise-copeaux RR2 avec arêtes de coupe arrondies avec facette, en nuance T5415, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10 - K25, pour l'usinage lourd à moyen des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNMX 191940SN-RR2:T5415
GradeT5415
Chipbreaker (CBMD)RR2
Product Number8717542
Product FamilyLN.X 19, LN.X 30
Insert Geometry
Insert DesignLN.X 19, LN.X 30
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.75"
Insert Thickness — mm (S)19.05 mm
Corner Radius — in (RE)0.1575"
Corner Radius — mm (RE)4 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717542
EAN3603604496421
Material Group Suitability
P — Steel and Cast Steel Usage possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
LNMX 191940SN-RR2:T5415 — Line Drawing PDF Download
