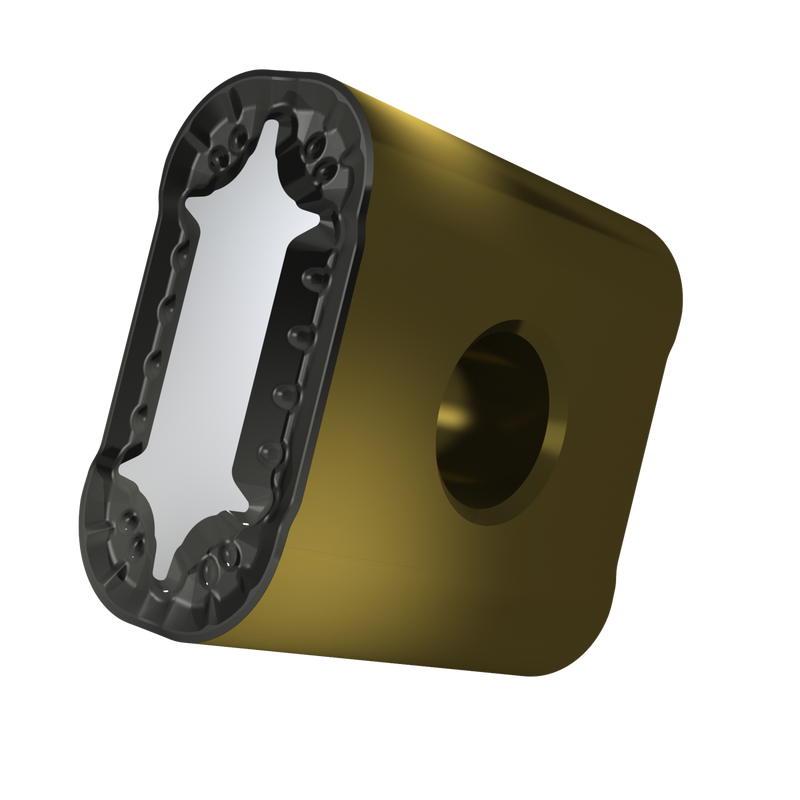

LNMX 191940SN-TF:T5415

LNMX 191940SN-TF:T5415

UGC DOR8717543
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$51.50 CAD - $51.50 CAD
$51.50 CAD
$51.50 CAD - $51.50 CAD
$51.50 CAD

Vendu en lots de : 10

Plaquette négative de conception spéciale, rectangulaire, d'une longueur de 19 mm, d'une épaisseur de 19,05 mm pour une profondeur de coupe de 4 mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux TF, en nuance T5415, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10 - K25, pour les fontes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNMX 191940SN-TF:T5415
GradeT5415
Chipbreaker (CBMD)TF
Product Number8717543
Product FamilyLN.X 19, LN.X 30
Insert Geometry
Insert DesignLN.X 19, LN.X 30
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.75"
Insert Thickness — mm (S)19.05 mm
Corner Radius — in (RE)0.157"
Corner Radius — mm (RE)4 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717543
EAN3603604496438
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
LNMX 191940SN-TF:T5415 — Line Drawing PDF Download
