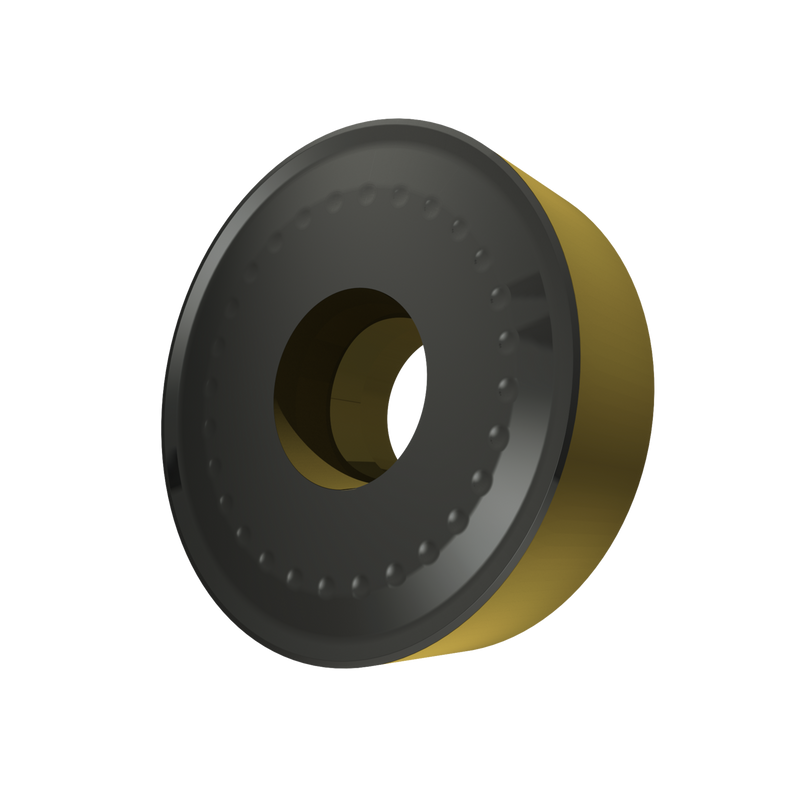

RCMX 3209MO-RM2:T5415

RCMX 3209MO-RM2:T5415

UGC DOR8717545
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$90.71 CAD - $90.71 CAD
$90.71 CAD
$90.71 CAD - $90.71 CAD
$90.71 CAD

Vendu en lots de : 5

Plaquette de tournage positive à géométrie spéciale, ronde avec dépouille 7°, diamètre 32 mm, épaisseur 9,52 mm, précision de positionnement selon ISO classe de tolérance M, brise-copeaux RM2, en nuance T5415, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10 - K25, pour l'usinage lourd à moyen des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMX 3209MO-RM2:T5415
GradeT5415
Chipbreaker (CBMD)RM2
Product Number8717545
Product FamilyRCMX
Insert Geometry
Insert DesignRCMX
Insert Shape Code (SC)R - rond
Inscribed Circle Dia. — in (IC)1.26"
Inscribed Circle Dia. — mm (IC)35.0 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717545
EAN3603604496452
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Utilisation possible
File Type Download
RCMX 3209MO-RM2:T5415 — Line Drawing PDF Download
