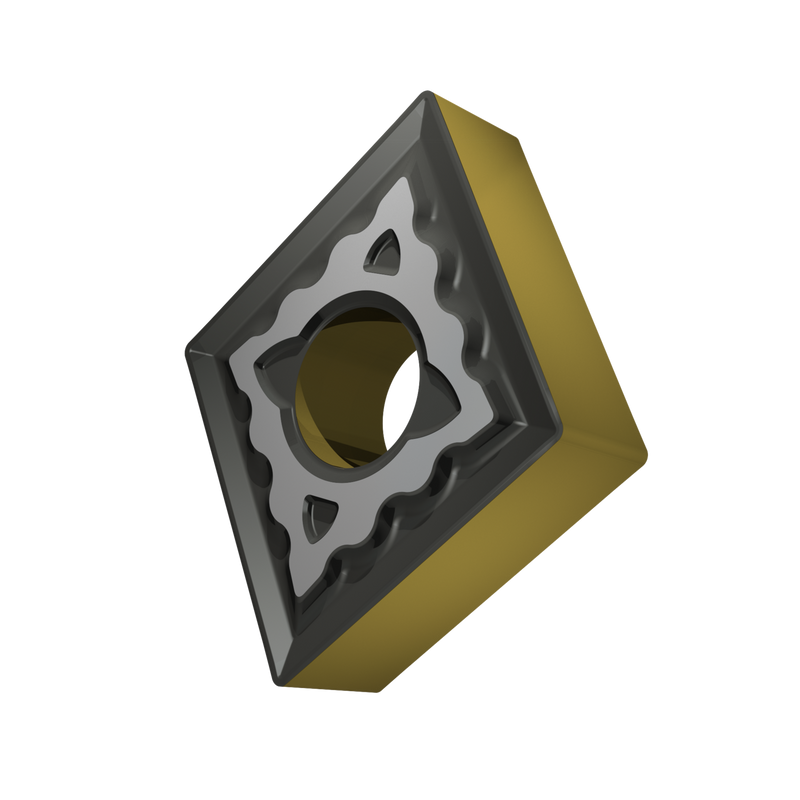

CNMG 431-KM:T5415

CNMG 431-KM:T5415

UGC DOR8717546
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.43 CAD - $14.43 CAD
$14.43 CAD
$14.43 CAD - $14.43 CAD
$14.43 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde à 80° avec un diamètre de cercle inscrit de 0,5 pouce, 0,187 pouce d'épaisseur, rayon de bec de 0,016 pouce, précision d'indexage selon la classe de tolérance ISO-M. En nuance T5415, un carbure WC-Co revêtu MT-CVD. Le brise-copeaux KM est polyvalent et constitue le premier choix pour l'usinage moyen des fontes. Il présente un angle de coupe légèrement positif et un listel stable et large.

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 431-KM:T5415
Product Name (ISO)CNMG 120404-KM:T5415
GradeT5415
Chipbreaker (CBMD)KM
Product Number8717546
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhomboïdal 80°
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717546
EAN3603604496469
Material Group Suitability
P — Steel and Cast Steel Usage possible
K — Cast Iron Usage principal
H — Hardened Materials Usage possible
File Type Download
CNMG 431-KM:T5415 — Line Drawing PDF Download
