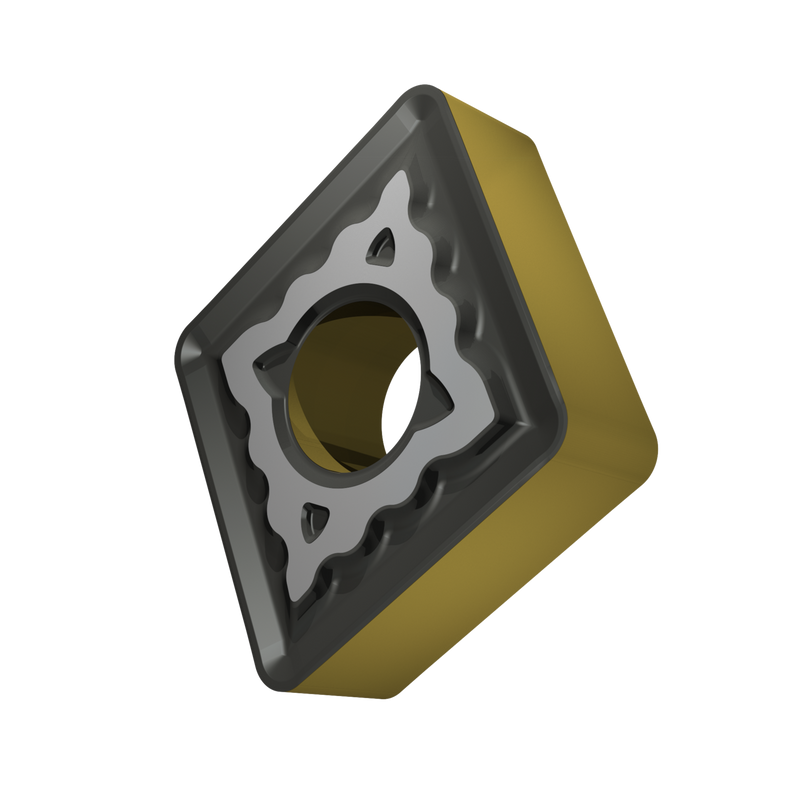

CNMG 433-KM:T5415

CNMG 433-KM:T5415

UGC DOR8717548
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.43 CAD - $14.43 CAD
$14.43 CAD
$14.43 CAD - $14.43 CAD
$14.43 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 0,5 pouce, 0,187 pouce d'épaisseur, rayon de bec de 0,047 pouce, précision de positionnement selon la classe de tolérance ISO M. En nuance T5415, un carbure WC-Co revêtu MT-CVD. Le brise-copeaux KM est polyvalent et le premier choix pour l'usinage moyen des fontes. Il présente un angle de coupe légèrement positif et une large facette T stable.

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 433-KM:T5415
Product Name (ISO)CNMG 120412-KM:T5415
GradeT5415
Chipbreaker (CBMD)KM
Product Number8717548
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle d'inclinaison rhomboïdal 80°
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717548
EAN3603604496483
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
CNMG 433-KM:T5415 — Line Drawing PDF Download
