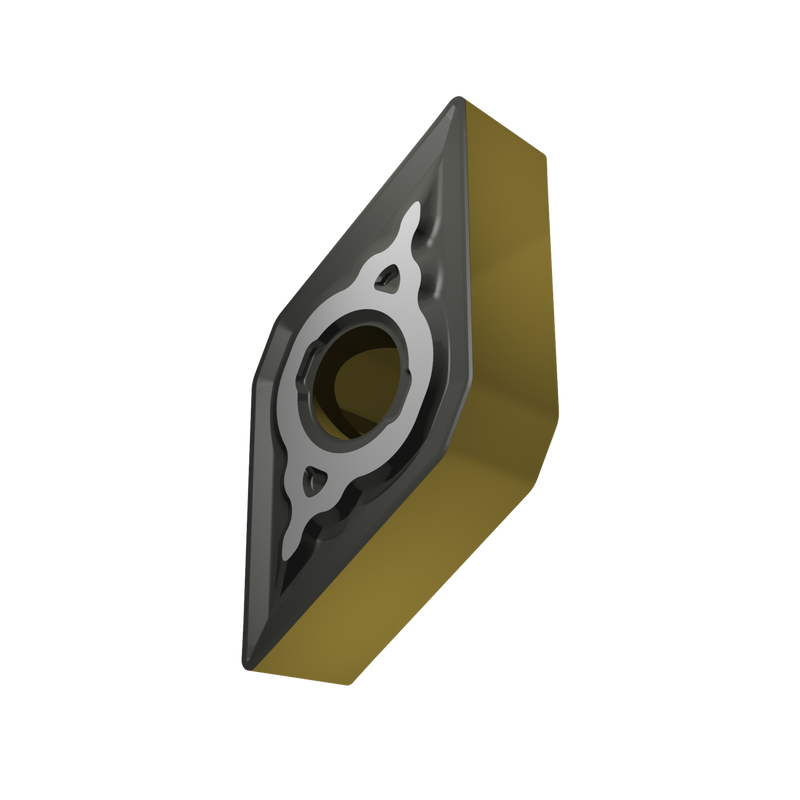

DNMG 331-KM:T5415

DNMG 331-KM:T5415

UGC DOR8717549
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.93 CAD - $17.93 CAD
$17.93 CAD
$17.93 CAD - $17.93 CAD
$17.93 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde à 55° avec cercle inscrit de 0,375 pouce, 0,187 pouce d'épaisseur, rayon de bec de 0,016 pouce, précision de positionnement selon la classe de tolérance ISO-M. En nuance T5415, un carbure WC-Co revêtu MT-CVD. Le brise-copeaux KM est polyvalent et constitue le premier choix pour l'usinage moyen des fontes. Il présente un angle de dépouille légèrement positif et un listel large et stable.

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 331-KM:T5415
Product Name (ISO)DNMG 110404-KM:T5415
GradeT5415
Chipbreaker (CBMD)KM
Product Number8717549
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle mort de 55°
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717549
EAN3603604496490
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
DNMG 331-KM:T5415 — Line Drawing PDF Download
