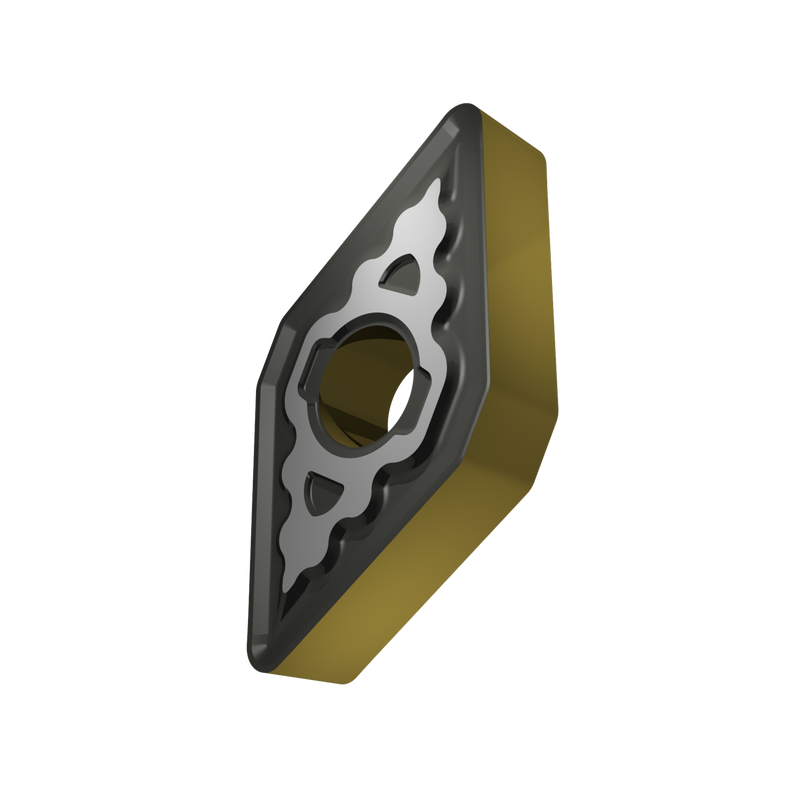

DNMG 433-KM:T5415

DNMG 433-KM:T5415

UGC DOR8717573
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.21 CAD - $21.21 CAD
$21.21 CAD
$21.21 CAD - $21.21 CAD
$21.21 CAD

Vendu en lots de : 10

Plaquette négative double-face, rhomboïde à 55° avec diamètre de cercle inscrit de 0,5 pouce, épaisseur de 0,187 pouce, rayon de bec de 0,047 pouce, précision d'indexage selon la classe de tolérance ISO-M. En nuance T5415, un carbure WC-Co revêtu MT-CVD. Le brise-copeaux KM est polyvalent et le premier choix pour l'usinage moyen des fontes. Il présente un angle de dépouille légèrement positif et une large facette de listel stable.

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 433-KM:T5415
Product Name (ISO)DNMG 150412-KM:T5415
GradeT5415
Chipbreaker (CBMD)KM
Product Number8717573
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle compris de 55° rhombique
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717573
EAN3603604496537
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Usage possible
File Type Download
DNMG 433-KM:T5415 — Line Drawing PDF Download
