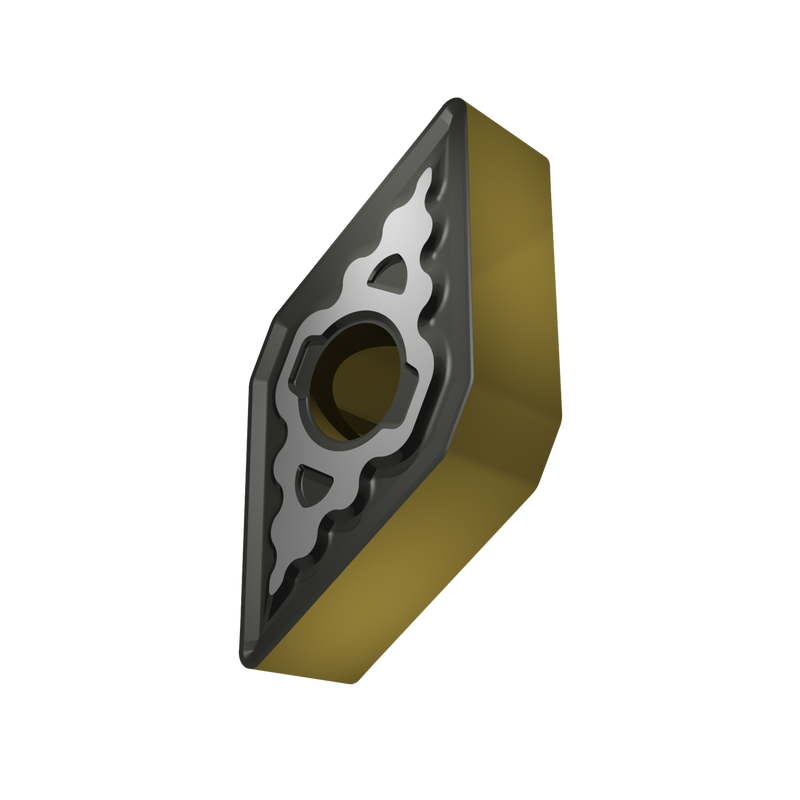

DNMG 442-KM:T5415

DNMG 442-KM:T5415

UGC DOR8717575
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.97 CAD - $22.97 CAD
$22.97 CAD
$22.97 CAD - $22.97 CAD
$22.97 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde à 55° avec un diamètre de cercle inscrit de 0,5 pouce, 0,25 pouce d'épaisseur, rayon de bec de 0,0315 pouce, précision d'indexage selon la classe de tolérance ISO-M. En nuance T5415, un carbure WC-Co revêtu MT-CVD. Le brise-copeaux KM est polyvalent et constitue le premier choix pour l'usinage moyen des fontes. Il présente un angle de coupe légèrement positif et un listel stable et large.

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 442-KM:T5415
Product Name (ISO)DNMG 150608-KM:T5415
GradeT5415
Chipbreaker (CBMD)KM
Product Number8717575
Product FamilyDNMG
Insert Geometry
Insert DesignGDNM
Insert Shape Code (SC)D - angle de 55° inclus rhomboïdal
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.0315"
Corner Radius — mm (RE)0.8 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717575
EAN3603604496551
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
DNMG 442-KM:T5415 — Line Drawing PDF Download
