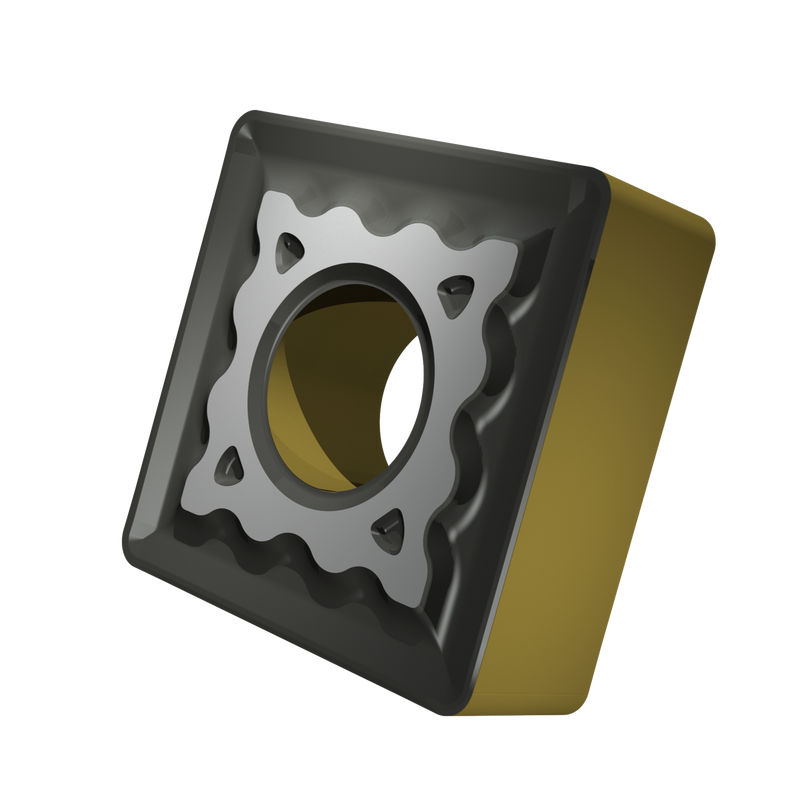

SNMG 432-KM:T5415

SNMG 432-KM:T5415

UGC DOR8717577
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.04 CAD - $14.04 CAD
$14.04 CAD
$14.04 CAD - $14.04 CAD
$14.04 CAD

Vendu en lots de : 10

Plaquette négative double face, carrée avec un diamètre de cercle inscrit de 0,5 pouce, 0,187 pouce d'épaisseur, un rayon de bec de 0,0315 pouce, précision d'indexage selon la classe de tolérance ISO-M. En nuance T5415, un carbure WC-Co revêtu MT-CVD. Le brise-copeaux KM est polyvalent et constitue le premier choix pour l'usinage moyen de la fonte. Il présente un angle de coupe légèrement positif et une plage d'usure stable et large.

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 432-KM:T5415
Product Name (ISO)SNMG 120408-KM:T5415
GradeT5415
Chipbreaker (CBMD)KM
Product Number8717577
Product FamilySNMG
Insert Geometry
Insert DesignGSNM
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.0315"
Corner Radius — mm (RE)0.8 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717577
EAN3603604496575
Material Group Suitability
P — Steel and Cast Steel Usage possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
SNMG 432-KM:T5415 — Line Drawing PDF Download
