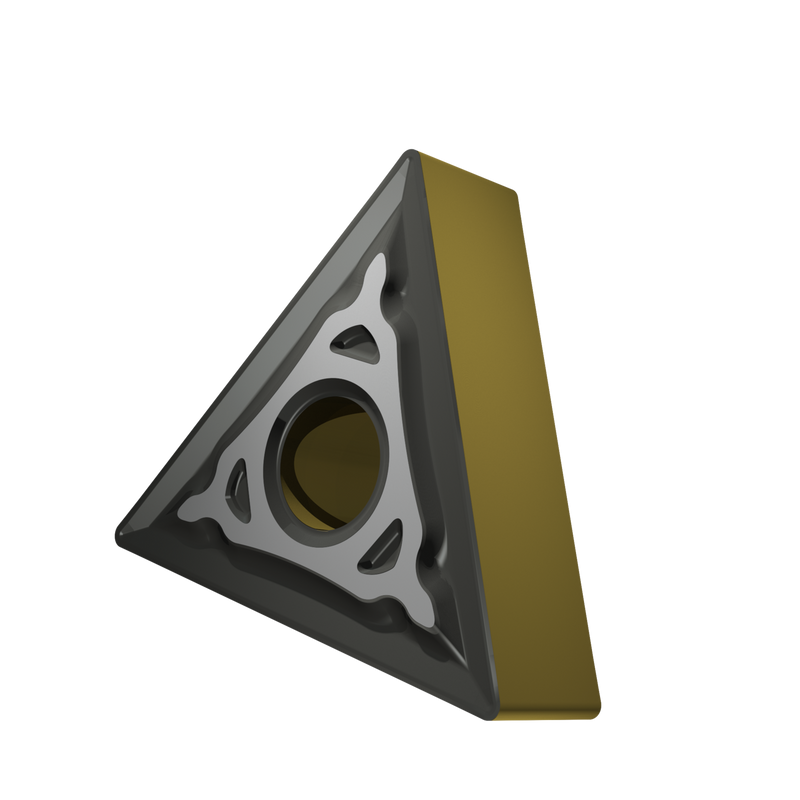

TNMG 331-KM:T5415

TNMG 331-KM:T5415

UGC DOR8717578
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.97 CAD - $11.97 CAD
$11.97 CAD
$11.97 CAD - $11.97 CAD
$11.97 CAD

Vendu en lots de : 10

Plaquette négative double-face pour tournage, triangulaire avec un diamètre de cercle inscrit de 0,375 pouce, épaisseur de 0,187 pouce, rayon de bec de 0,016 pouce, précision d'indexage selon la classe de tolérance ISO-M. En nuance T5415, un carbure WC-Co revêtu MT-CVD. Le brise-copeaux KM est polyvalent et le premier choix pour l'usinage moyen des fontes. Il présente un angle de dépouille légèrement positif et une plage de dépouille stable et large.

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 331-KM:T5415
Product Name (ISO)TNMG 160404-KM:T5415
GradeT5415
Chipbreaker (CBMD)KM
Product Number8717578
Product FamilyTNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717578
EAN3603604496582
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Usage possible
File Type Download
TNMG 331-KM:T5415 — Line Drawing PDF Download
