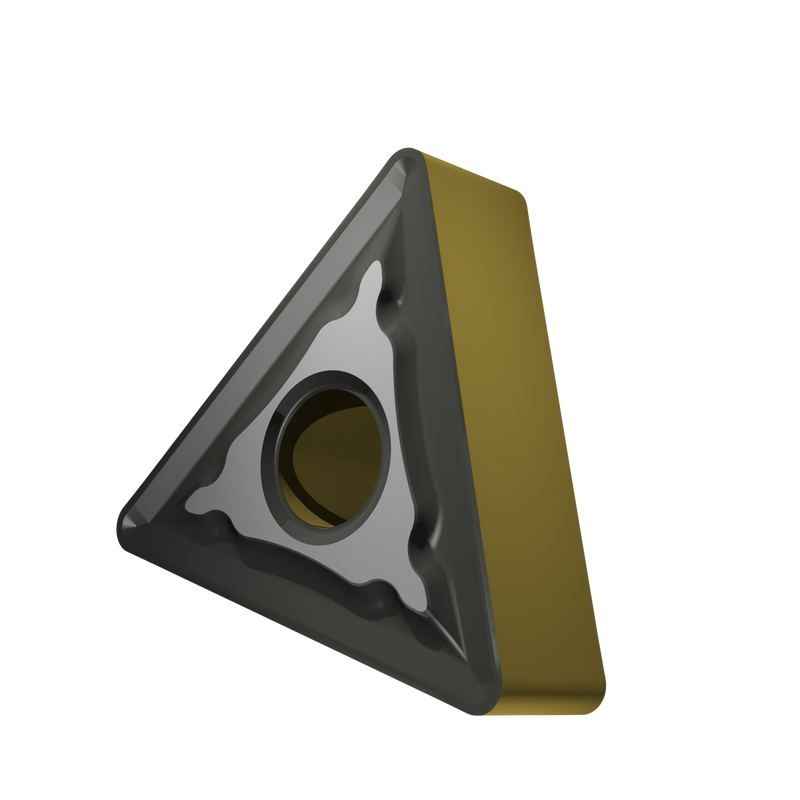

TNMG 332-KM:T5415

TNMG 332-KM:T5415

UGC DOR8717579
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.97 CAD - $11.97 CAD
$11.97 CAD
$11.97 CAD - $11.97 CAD
$11.97 CAD

Vendu en lots de : 10

Plaquette négative double face, triangulaire avec diamètre du cercle inscrit de 0,375 pouce, 0,187 pouce d'épaisseur, rayon de bec de 0,031 pouce, précision d'indexage selon la classe de tolérance ISO M. En nuance T5415, un carbure WC-Co revêtu MT-CVD. Le brise-copeaux KM est polyvalent et constitue le premier choix pour l'usinage moyen des fontes. Il présente un angle de coupe légèrement positif et une facette de dégagement large et stable.

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 332-KM:T5415
Product Name (ISO)TNMG 160408-KM:T5415
GradeT5415
Chipbreaker (CBMD)KM
Product Number8717579
Product FamilyTNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717579
EAN3603604496599
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
TNMG 332-KM:T5415 — Line Drawing PDF Download
