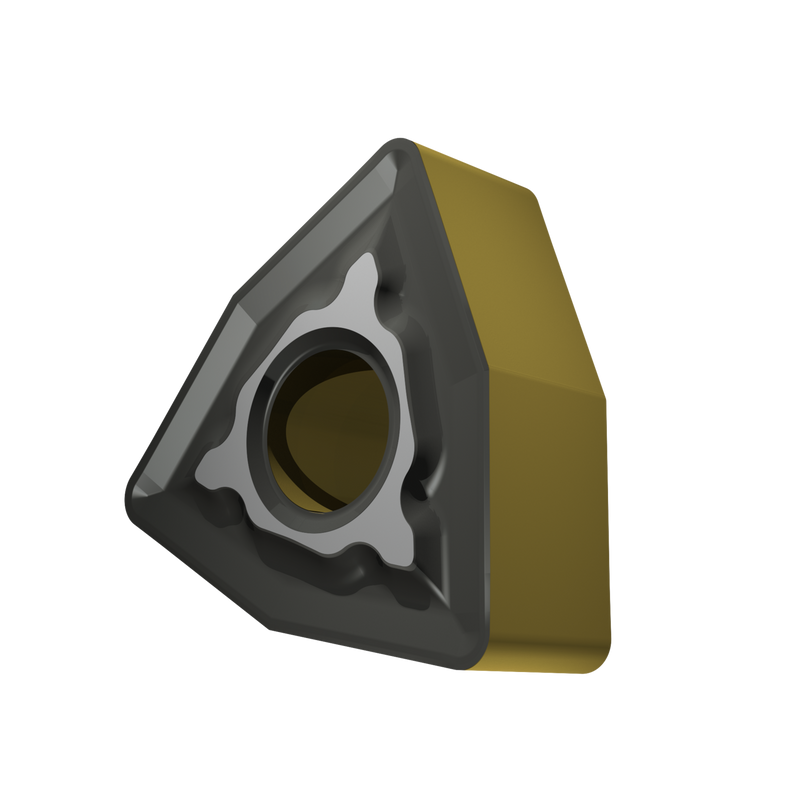

WNMG 332-KM:T5415

WNMG 332-KM:T5415

UGC DOR8717586
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.76 CAD - $11.76 CAD
$11.76 CAD
$11.76 CAD - $11.76 CAD
$11.76 CAD

Vendu en lots de : 10

Plaquette négative double face, trigon 80° avec un diamètre de cercle inscrit de 0,375 pouce, 0,187 pouce d'épaisseur, un rayon de bec de 0,0315 pouce, précision d'indexage selon la classe de tolérance ISO-M. En nuance T5415, un carbure WC-Co revêtu MT-CVD. Le brise-copeaux KM est polyvalent et le premier choix pour l'usinage moyen des fontes. Il présente un angle de dépouille légèrement positif et une large facette de dégagement stable.

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 332-KM:T5415
Product Name (ISO)WNMG 060408-KM:T5415
GradeT5415
Chipbreaker (CBMD)KM
Product Number8717586
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigone
Corner Radius — in (RE)0.0315"
Corner Radius — mm (RE)0.8 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717586
EAN3603604496667
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
WNMG 332-KM:T5415 — Line Drawing PDF Download
