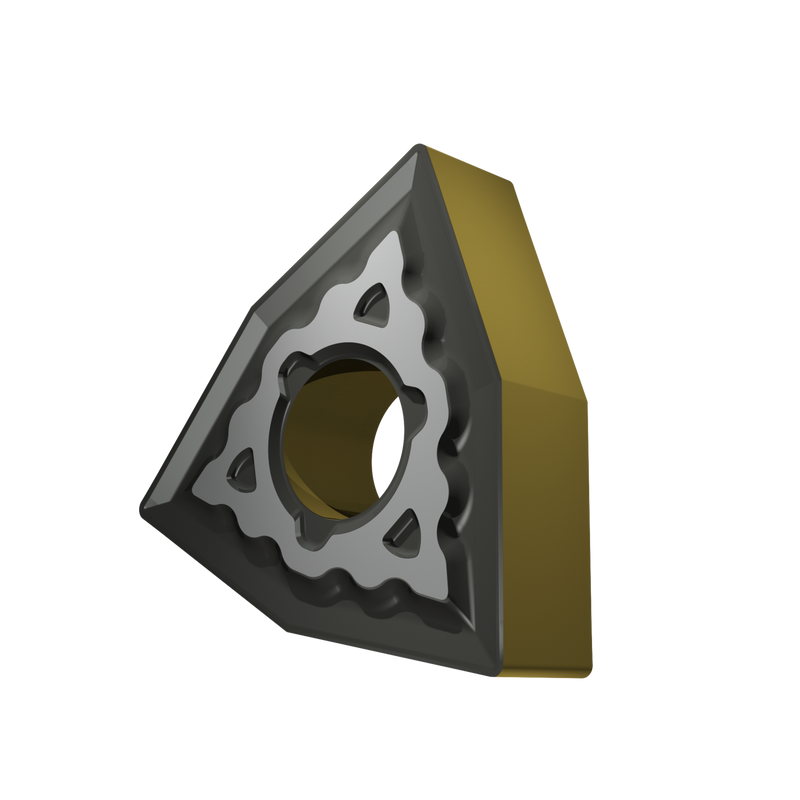

WNMG 431-KM:T5415

WNMG 431-KM:T5415

UGC DOR8717587
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.21 CAD - $14.21 CAD
$14.21 CAD
$14.21 CAD - $14.21 CAD
$14.21 CAD

Vendu en lots de : 10

Plaquette négative double face, trigon de 80° avec un diamètre de cercle inscrit de 0,5 pouce, 0,187 pouce d'épaisseur, un rayon de bec de 0,016 pouce, une précision de positionnement selon la classe de tolérance ISO-M. En nuance T5415, un carbure WC-Co revêtu MT-CVD. Le brise-copeaux KM est polyvalent et le premier choix pour l'usinage moyen des fontes. Il présente un angle de coupe légèrement positif et un listel stable et large.

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 431-KM:T5415
Product Name (ISO)WNMG 080404-KM:T5415
GradeT5415
Chipbreaker (CBMD)KM
Product Number8717587
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigone
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717587
EAN3603604496674
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
WNMG 431-KM:T5415 — Line Drawing PDF Download
