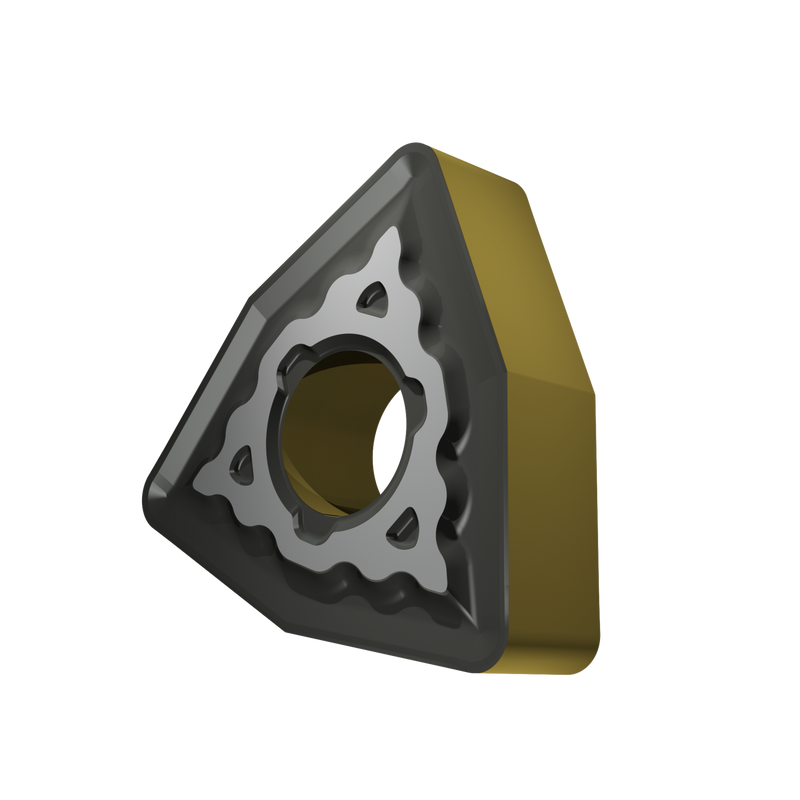

WNMG 433-KM:T5415

WNMG 433-KM:T5415

UGC DOR8717589
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.21 CAD - $14.21 CAD
$14.21 CAD
$14.21 CAD - $14.21 CAD
$14.21 CAD

Vendu en lots de : 10

Plaquette négative double-face, trigon 80° avec diamètre de cercle inscrit de 0,5 pouce, épaisseur de 0,187 pouce, rayon de bec de 0,047 pouce, précision d'indexage selon la classe de tolérance ISO-M. En nuance T5415, un carbure WC-Co revêtu MT-CVD. Le brise-copeaux KM est polyvalent et le premier choix pour l'usinage moyen des fontes. Il présente un angle d'attaque légèrement positif et un large listel en T stable.

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 433-KM:T5415
Product Name (ISO)WNMG 080412-KM:T5415
GradeT5415
Chipbreaker (CBMD)KM
Product Number8717589
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigonométrie
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717589
EAN3603604496698
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
WNMG 433-KM:T5415 — Line Drawing PDF Download
