200A06R-ISMORN12-C
200A06R-ISMORN12-C

200A06R-ISMORN12-C

UGC DOR8747997
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$601.00 CAD - $601.00 CAD
$601.00 CAD
$601.00 CAD - $601.00 CAD
$601.00 CAD

Vendu en lots de : 1

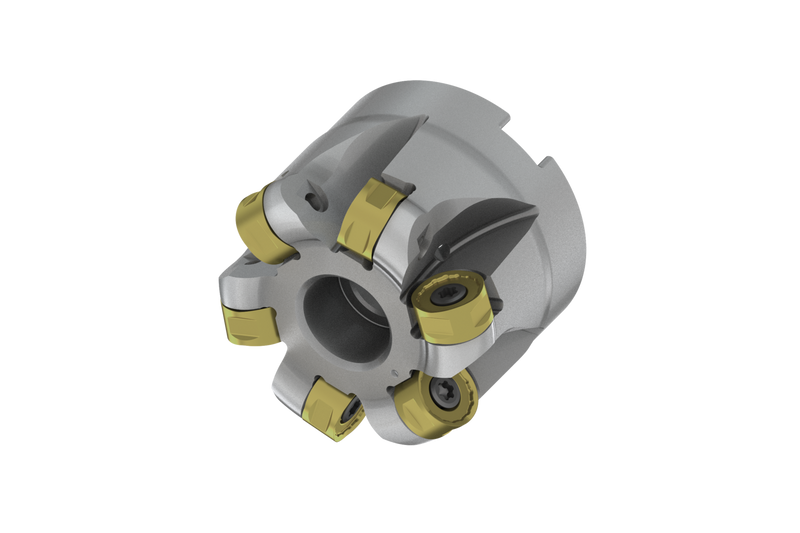

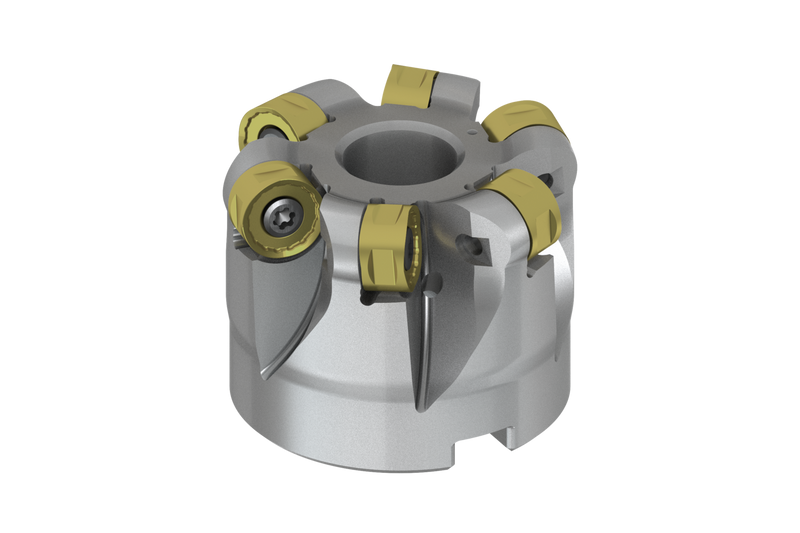

Fraise à surfacer-dresser avec géométrie double négative utilisant 6 plaquettes double face RNMU 1205MOT, diamètre de coupe 2.000'' avec alésage de connexion de .750'' selon DIN 8030-A, longueur de dépassement de 1.575'', arrosage centralisé pour surfaçage, copiage et usinage par plongées successives avec une profondeur de coupe maximale de .236''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)200A06R-ISMORN12-C
Product Number8747997
Product FamilyISRN12
Insert Geometry
Depth of Cut Max — in (APMX)0.236"
Dimensions
Cutting Diameter — in (DC)1.528"
Cutting Diameter — mm (DC)38.8 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)19.05 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSRN12
ShankFraise cylindrique deux tailles DIN 8030 A
Reference Numbers
EDP Number8747997
EAN3603604518017
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
200A06R-ISMORN12-C — 3D Model STP Download
200A06R-ISMORN12-C — 2D Model DXF Download
200A06R-ISMORN12-C — Line Drawing PDF Download
