E0611/4X20H2NO1
E0611/4X20H2NO1

E0611/4X20H2NO1

UGC DOR8764867
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.06 CAD - $11.06 CAD
$11.06 CAD
$11.06 CAD - $11.06 CAD
$11.06 CAD

Vendu en lots de : 1

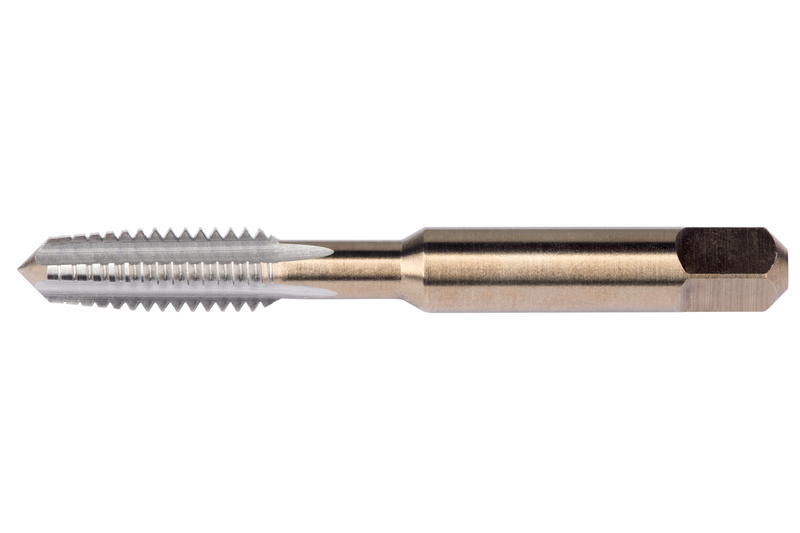

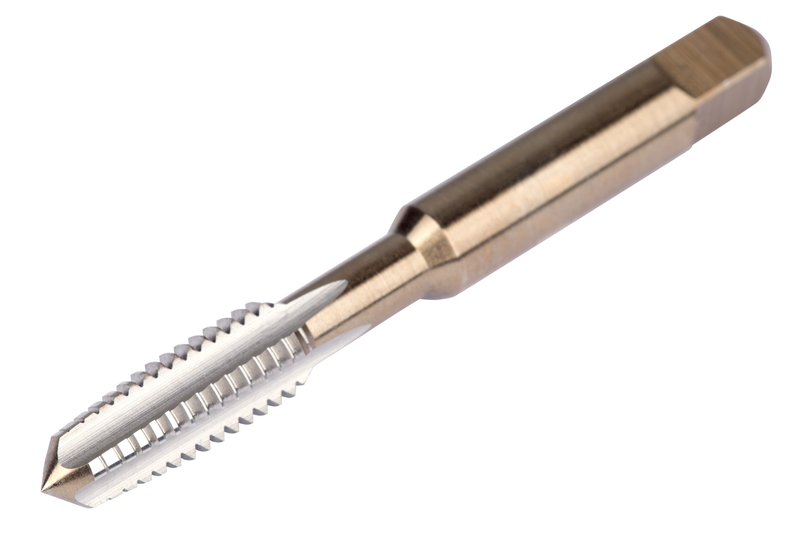

Taraud d'entrée, 1/4-20 UNC H2, finition brillante HSS, selon la norme ANSI pour acier au carbone moyen, allié et de résistance moyenne

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0611/4X20H2NO1
Product Number8764867
Product FamilyE061NO1(SDC)
Dimensions
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Usable Length — in (LU)1.142"
Usable Length — mm (LU)29.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)6.48 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8764867
EAN3603607198957
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage possible
K — Cast Iron Usage possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E0611/4X20H2NO1 — Line Drawing PDF Download
