E0615/16X18H11NO1
E0615/16X18H11NO1

E0615/16X18H11NO1

UGC DOR8764869
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.40 CAD - $15.40 CAD
$15.40 CAD
$15.40 CAD - $15.40 CAD
$15.40 CAD

Vendu en lots de : 1

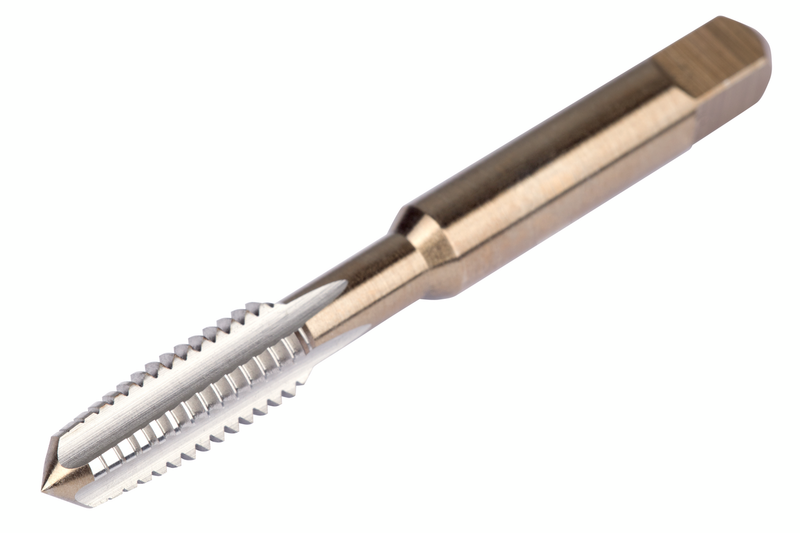

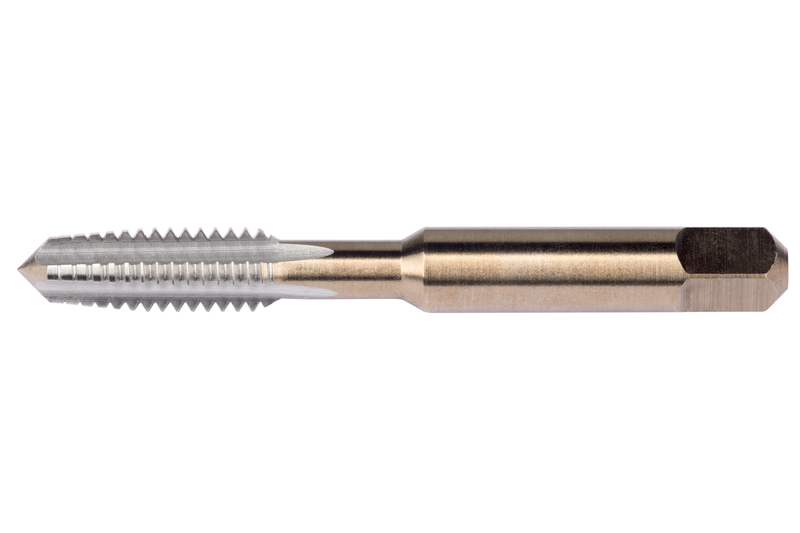

Taraud conique, filetage 5/16-18 UNC H11, finition brillante HSS conforme à la norme ANSI pour les aciers au carbone et alliés de résistance moyenne

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0615/16X18H11NO1
Product Number8764869
Product FamilyE061NO1(NCU)
Dimensions
Overall Length — in (OAL)2.7188"
Overall Length — mm (OAL)69.06 mm
Usable Length — in (LU)1.343"
Usable Length — mm (LU)34.1 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)8.08 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8764869
EAN3603607198971
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E0615/16X18H11NO1 — Line Drawing PDF Download
