E0615/16X18H11NO2
E0615/16X18H11NO2

E0615/16X18H11NO2

UGC DOR8764895
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.94 CAD - $14.94 CAD
$14.94 CAD
$14.94 CAD - $14.94 CAD
$14.94 CAD

Vendu en lots de : 1

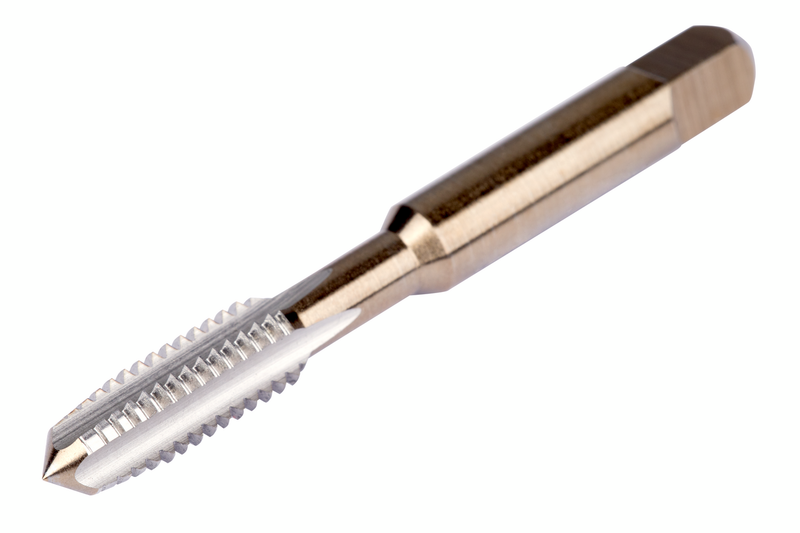

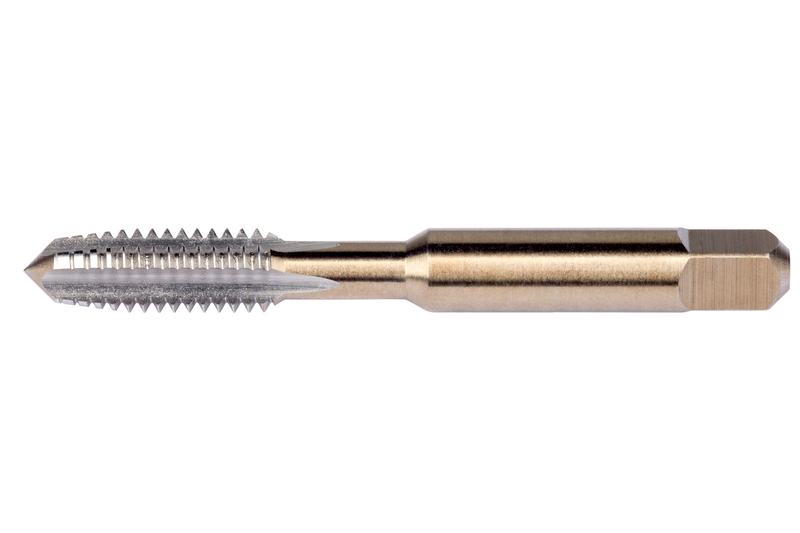

Taraud main d'ébauche, 5/16-18 UNC H11, finition brillante HSS selon norme ANSI pour acier mi-dur, acier à teneur moyenne en carbone et acier allié

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0615/16X18H11NO2
Product Number8764895
Product FamilyE061NO2(NON)
Dimensions
Overall Length — in (OAL)2.7188"
Overall Length — mm (OAL)69.06 mm
Usable Length — in (LU)1.343"
Usable Length — mm (LU)34.1 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)8.08 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8764895
EAN3603607199237
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E0615/16X18H11NO2 — Line Drawing PDF Download
