E0611/2X13H11NO2
E0611/2X13H11NO2

E0611/2X13H11NO2

UGC DOR8764900
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.49 CAD - $29.49 CAD
$29.49 CAD
$29.49 CAD - $29.49 CAD
$29.49 CAD

Vendu en lots de : 1

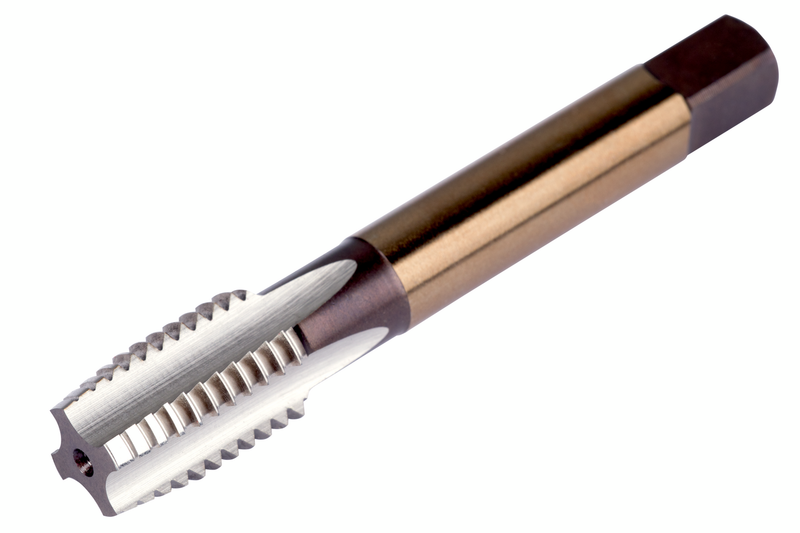

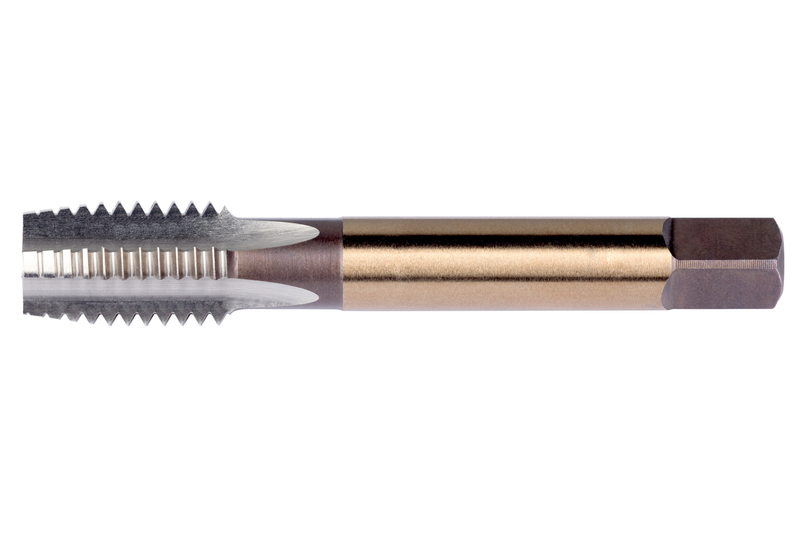

Taraud main d'entrée, 1/2-13 UNC H11, finition brillante HSS selon la norme ANSI pour acier mi-doux, mi-dur et allié

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0611/2X13H11NO2
Product Number8764900
Product FamilyE061NO2(UNC)
Dimensions
Overall Length — in (OAL)3.375"
Overall Length — mm (OAL)85.73 mm
Usable Length — in (LU)2.165"
Usable Length — mm (LU)55.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)9.32 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8764900
EAN3603607199282
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage possible
K — Cast Iron Usage possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E0611/2X13H11NO2 — Line Drawing PDF Download
