E0616X32H2NO6
E0616X32H2NO6

E0616X32H2NO6

UGC DOR8764929
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.97 CAD - $25.97 CAD
$25.97 CAD
$25.97 CAD - $25.97 CAD
$25.97 CAD

Vendu en lots de : 1

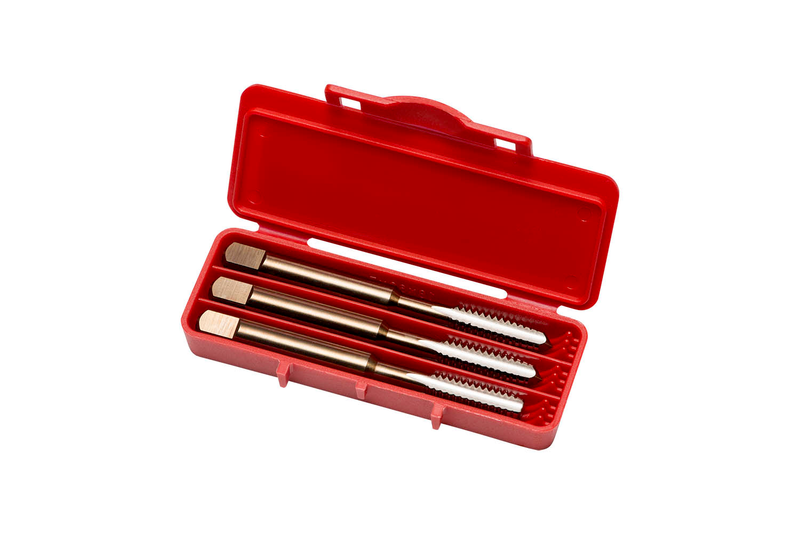

Jeu de 3 tarauds à main à entrée conique, d'ébauche et semi-finition, n° 6-32 UNC H2, HSS finition brillante selon la norme ANSI pour acier au carbone et allié à résistance moyenne

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0616X32H2NO6
Product Number8764929
Product FamilyE061NO6(NC)
Dimensions
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)3.58 mm
Number of Flutes (NOF)3
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8764929
EAN3603607199572
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E0616X32H2NO6 — Line Drawing PDF Download
