E0611.1/4X8H5NO1
E0611.1/4X8H5NO1

E0611.1/4X8H5NO1

UGC DOR8764933
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$143.54 CAD - $143.54 CAD
$143.54 CAD
$143.54 CAD - $143.54 CAD
$143.54 CAD

Vendu en lots de : 1

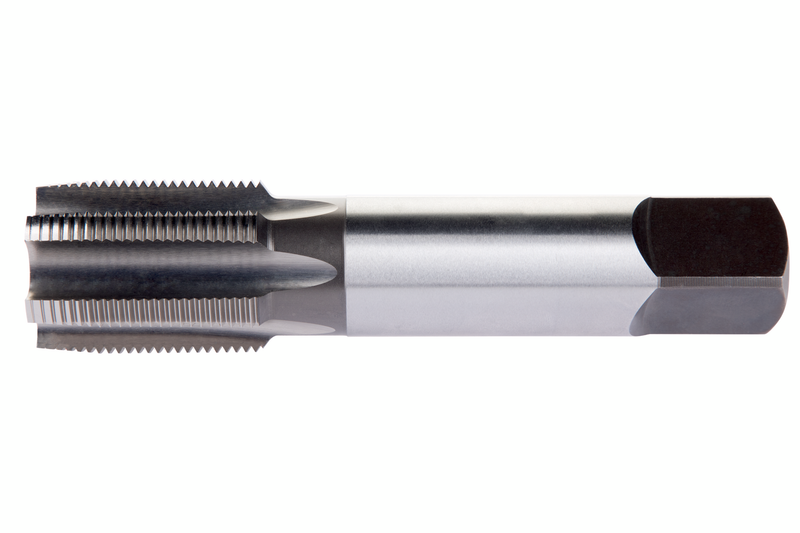

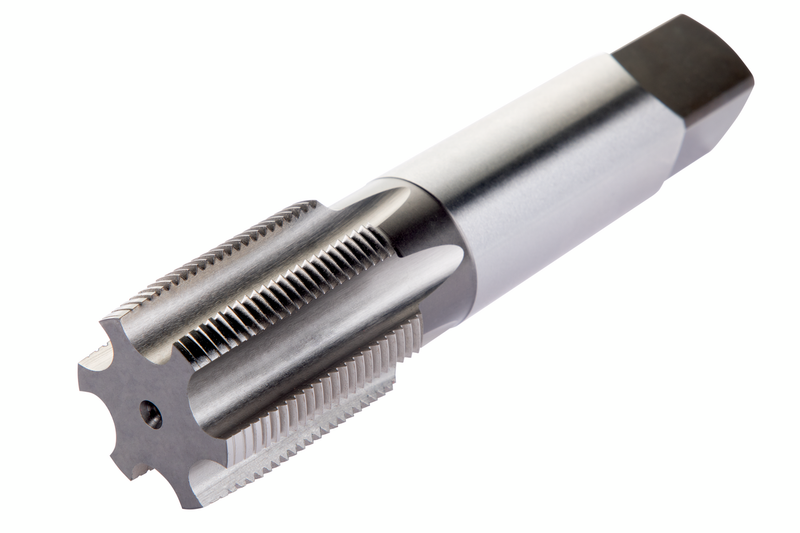

Taraud conique, 1.1/4-8 UN H5, finition brillante HSS selon la norme ANSI pour acier mi-doux, mi-carbone et allié

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0611.1/4X8H5NO1
Product Number8764933
Product FamilyE061NO1(8UN)
Dimensions
Overall Length — in (OAL)5.75"
Overall Length — mm (OAL)146.05 mm
Usable Length — in (LU)2.441"
Usable Length — mm (LU)62.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)25.93 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8764933
EAN3603607199619
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E0611.1/4X8H5NO1 — Line Drawing PDF Download
