E0611.3/8X8H5NO1
E0611.3/8X8H5NO1

E0611.3/8X8H5NO1

UGC DOR8764934
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$186.06 CAD - $186.06 CAD
$186.06 CAD
$186.06 CAD - $186.06 CAD
$186.06 CAD

Vendu en lots de : 1

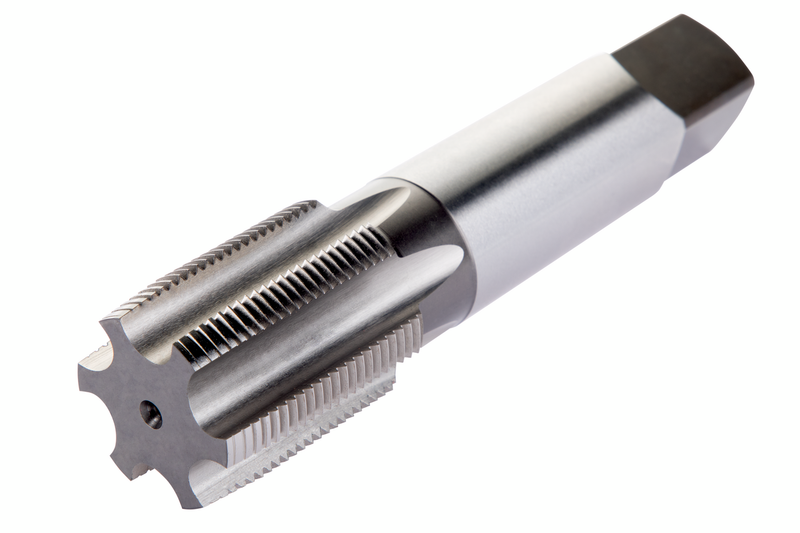

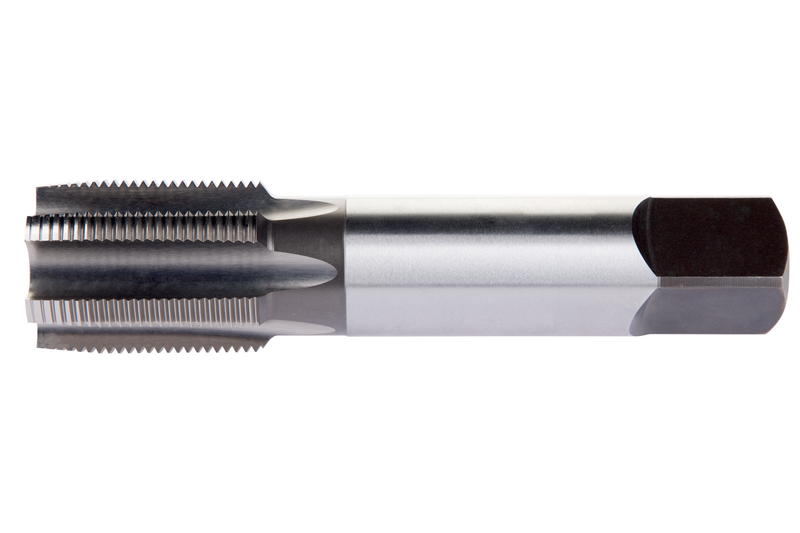

Taraud conique, filetage 1.3/8-8 UN H5, finition brillante HSS conforme à la norme ANSI pour les aciers à moyenne résistance, à teneur moyenne en carbone et alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0611.3/8X8H5NO1
Product Number8764934
Product FamilyE061NO1(8UN)
Dimensions
Overall Length — in (OAL)6.0625"
Overall Length — mm (OAL)153.99 mm
Usable Length — in (LU)2.677"
Usable Length — mm (LU)68.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)28.14 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8764934
EAN3603607199626
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E0611.3/8X8H5NO1 — Line Drawing PDF Download
