E0611.1/8X8H5NO2
E0611.1/8X8H5NO2

E0611.1/8X8H5NO2

UGC DOR8764940
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$125.71 CAD - $125.71 CAD
$125.71 CAD
$125.71 CAD - $125.71 CAD
$125.71 CAD

Vendu en lots de : 1

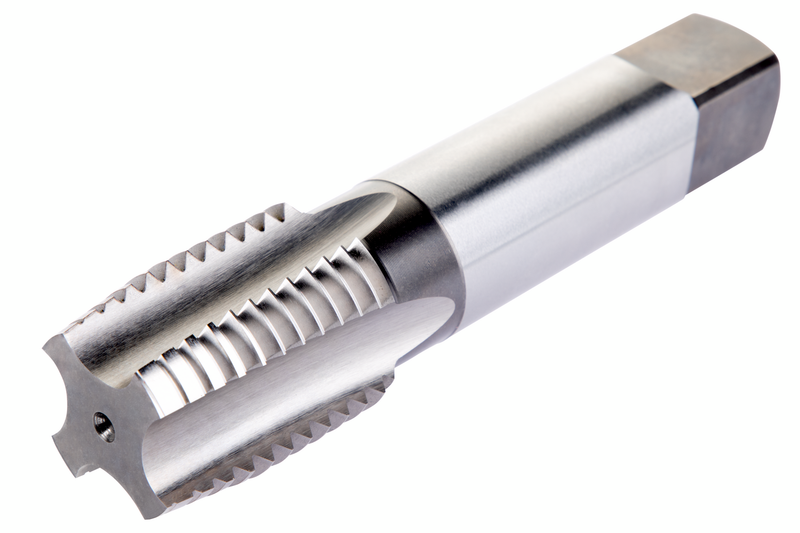

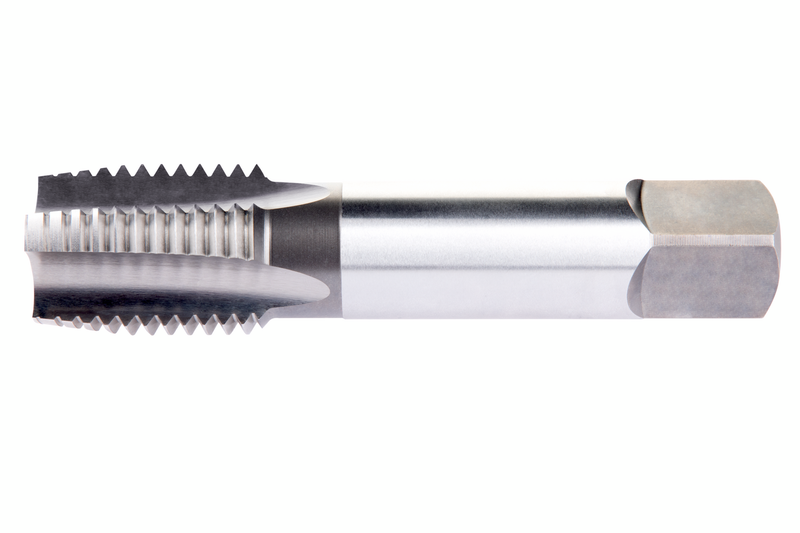

Taraud main d’entrée, 1.1/8-8 UN H5, finition brillante HSS selon la norme ANSI pour l'acier de résistance moyenne, l'acier au carbone moyen et l'acier allié

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0611.1/8X8H5NO2
Product Number8764940
Product FamilyE061NO2(8UN)
Dimensions
Overall Length — in (OAL)5.4375"
Overall Length — mm (OAL)138.11 mm
Usable Length — in (LU)2.205"
Usable Length — mm (LU)56.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)22.76 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8764940
EAN3603607199688
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E0611.1/8X8H5NO2 — Line Drawing PDF Download
