E0611.3/4X8H6NO2
E0611.3/4X8H6NO2

E0611.3/4X8H6NO2

UGC DOR8764945
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$310.86 CAD - $310.86 CAD
$310.86 CAD
$310.86 CAD - $310.86 CAD
$310.86 CAD

Vendu en lots de : 1

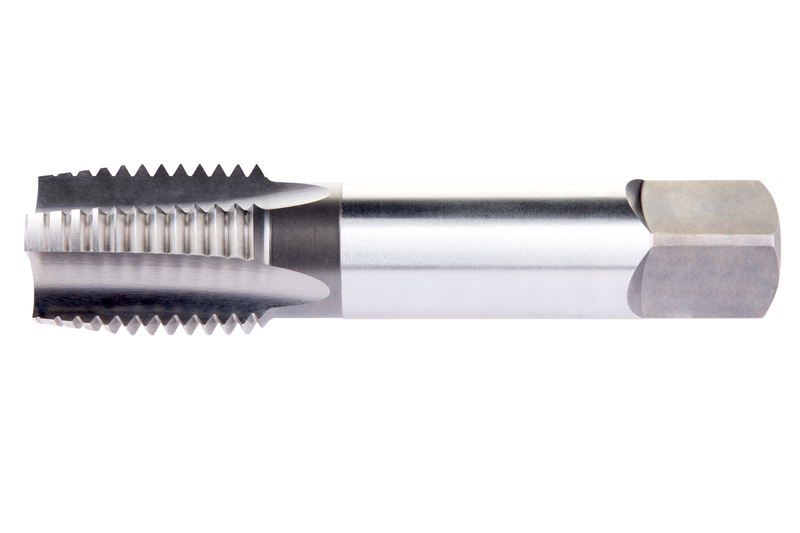

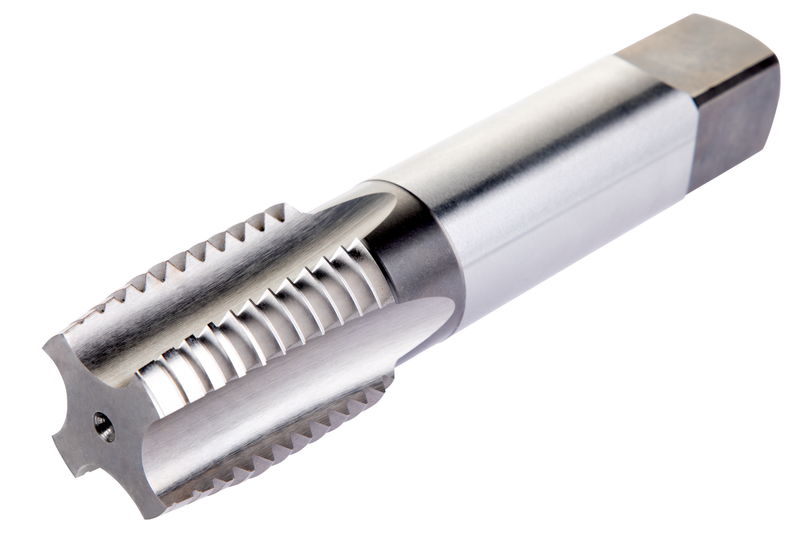

Taraud main en queue, 1.3/4-8 UN H6, finition brillante HSS selon la norme ANSI pour acier au carbone et acier allié de résistance moyenne

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0611.3/4X8H6NO2
Product Number8764945
Product FamilyE061NO2(8UN)
Dimensions
Overall Length — in (OAL)7.0"
Overall Length — mm (OAL)177.8 mm
Usable Length — in (LU)2.992"
Usable Length — mm (LU)76.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)36.32 mm
Number of Flutes (NOF)6
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8764945
EAN3603607199732
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E0611.3/4X8H6NO2 — Line Drawing PDF Download
