E0611.1/8X8H5NO3
E0611.1/8X8H5NO3

E0611.1/8X8H5NO3

UGC DOR8764948
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$122.06 CAD - $122.06 CAD
$122.06 CAD
$122.06 CAD - $122.06 CAD
$122.06 CAD

Vendu en lots de : 1

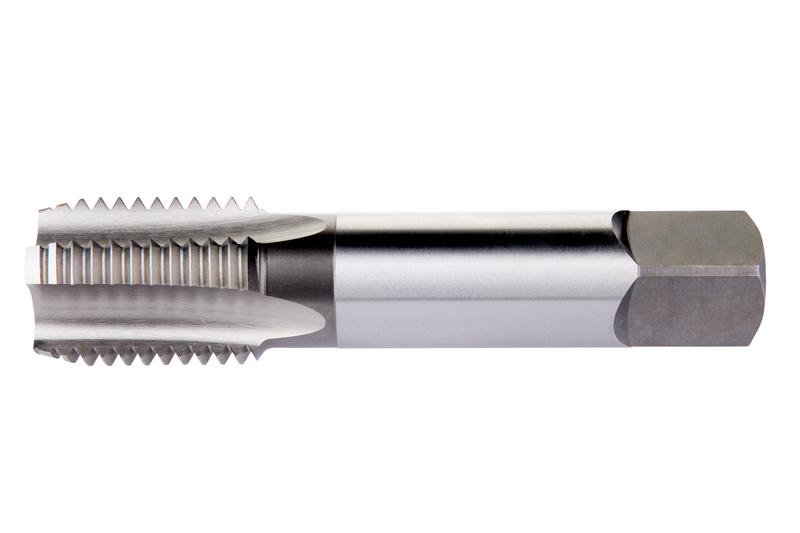

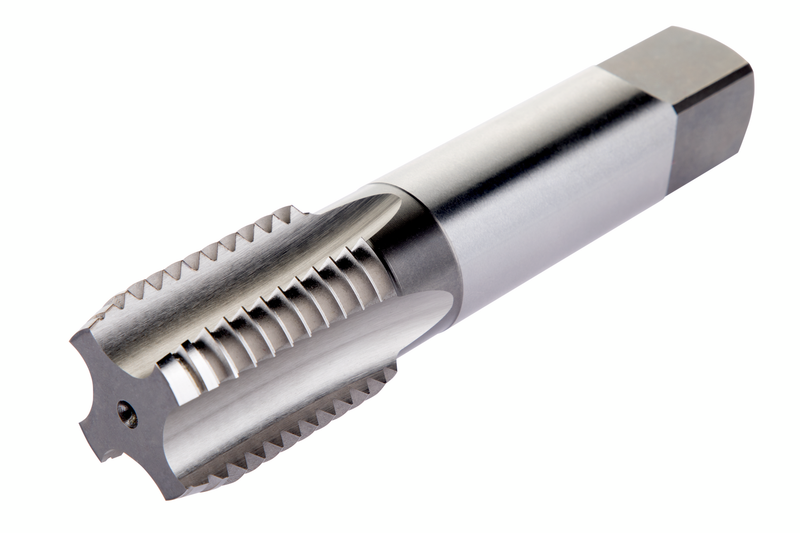

Taraud de finition ébauche, 1.1/8-8 UN H5, finition brillante HSS selon la norme ANSI pour les aciers à moyenne résistance, à teneur moyenne en carbone et alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0611.1/8X8H5NO3
Product Number8764948
Product FamilyE061NO3(8UN)
Dimensions
Overall Length — in (OAL)5.4375"
Overall Length — mm (OAL)138.11 mm
Usable Length — in (LU)2.205"
Usable Length — mm (LU)56.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)22.76 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8764948
EAN3603607199763
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E0611.1/8X8H5NO3 — Line Drawing PDF Download
