E0611.1/4X8H5NO3
E0611.1/4X8H5NO3

E0611.1/4X8H5NO3

UGC DOR8764949
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$147.66 CAD - $147.66 CAD
$147.66 CAD
$147.66 CAD - $147.66 CAD
$147.66 CAD

Vendu en lots de : 1

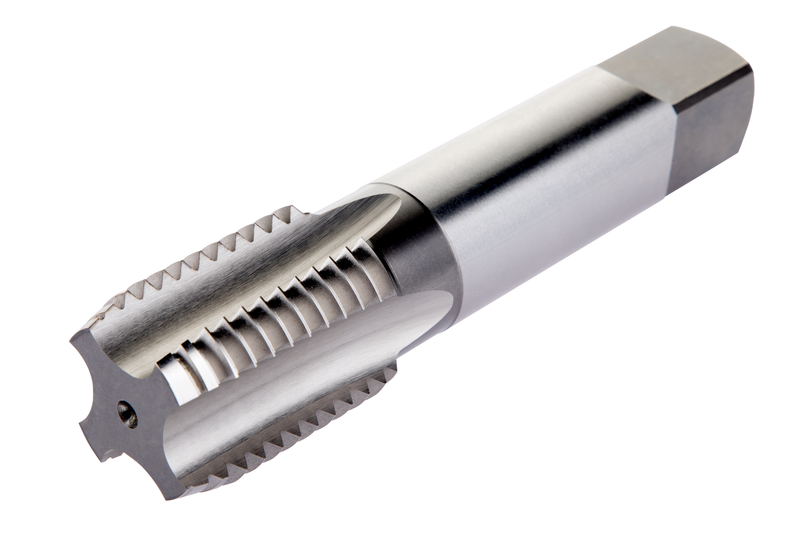

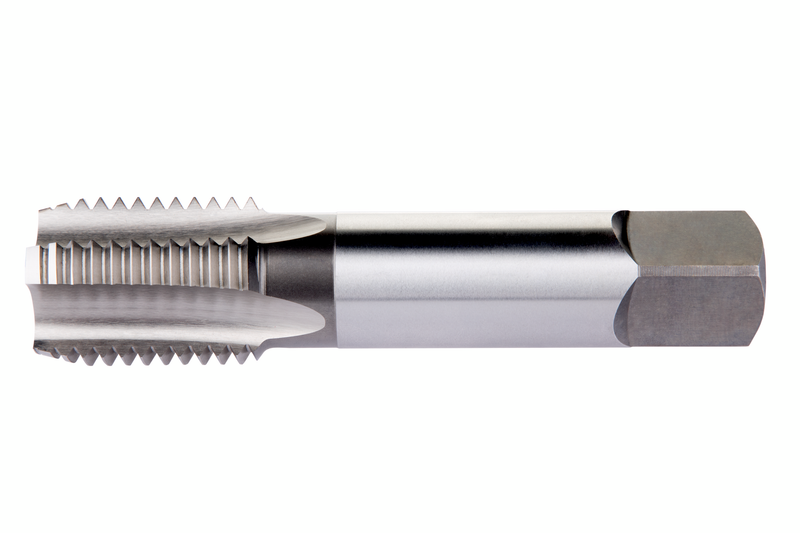

Taraud de finition ébauche (semi-fond), 1.1/4-8 UN H5, finition brillante HSS selon la norme ANSI pour acier allié, au carbone et à moyenne résistance

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0611.1/4X8H5NO3
Product Number8764949
Product FamilyE061NO3(8UN)
Dimensions
Overall Length — in (OAL)5.75"
Overall Length — mm (OAL)146.05 mm
Usable Length — in (LU)2.441"
Usable Length — mm (LU)62.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)25.93 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8764949
EAN3603607199770
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E0611.1/4X8H5NO3 — Line Drawing PDF Download
