E0611.1/2X8H5NO3
E0611.1/2X8H5NO3

E0611.1/2X8H5NO3

UGC DOR8764951
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$215.31 CAD - $215.31 CAD
$215.31 CAD
$215.31 CAD - $215.31 CAD
$215.31 CAD

Vendu en lots de : 1

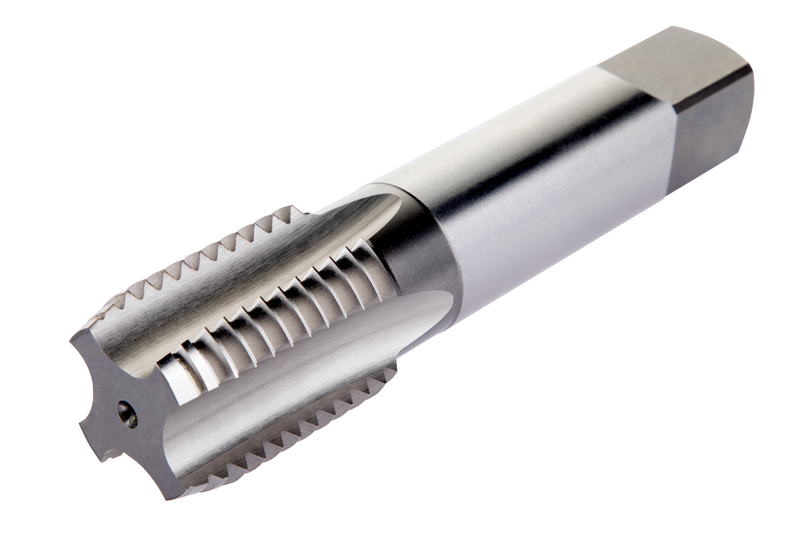

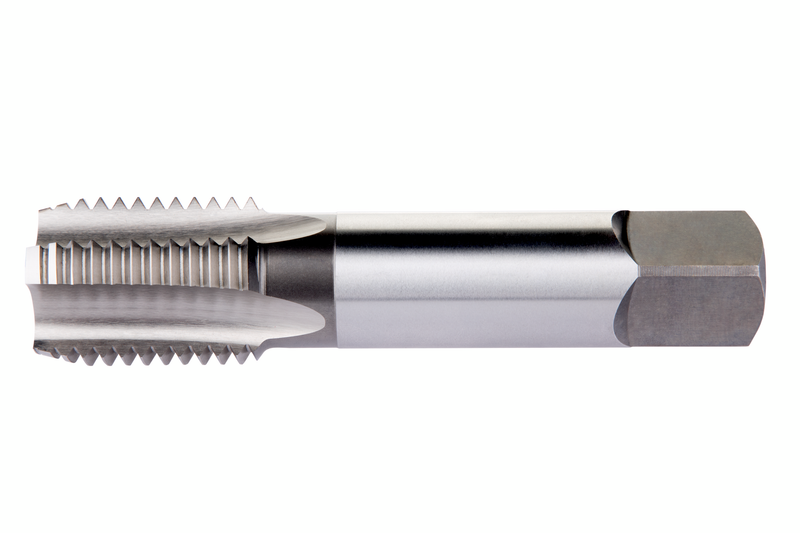

Taraud de finition ébauche, 1.1/2-8 UN H5, finition brillante HSS selon la norme ANSI pour les aciers à moyenne résistance, à teneur moyenne en carbone et alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0611.1/2X8H5NO3
Product Number8764951
Product FamilyE061NO3(8UN)
Dimensions
Overall Length — in (OAL)6.375"
Overall Length — mm (OAL)161.93 mm
Usable Length — in (LU)2.677"
Usable Length — mm (LU)68.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)31.32 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8764951
EAN3603607199794
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
