E0611.5/8X8H6NO3
E0611.5/8X8H6NO3

E0611.5/8X8H6NO3

UGC DOR8764952
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$277.94 CAD - $277.94 CAD
$277.94 CAD
$277.94 CAD - $277.94 CAD
$277.94 CAD

Vendu en lots de : 1

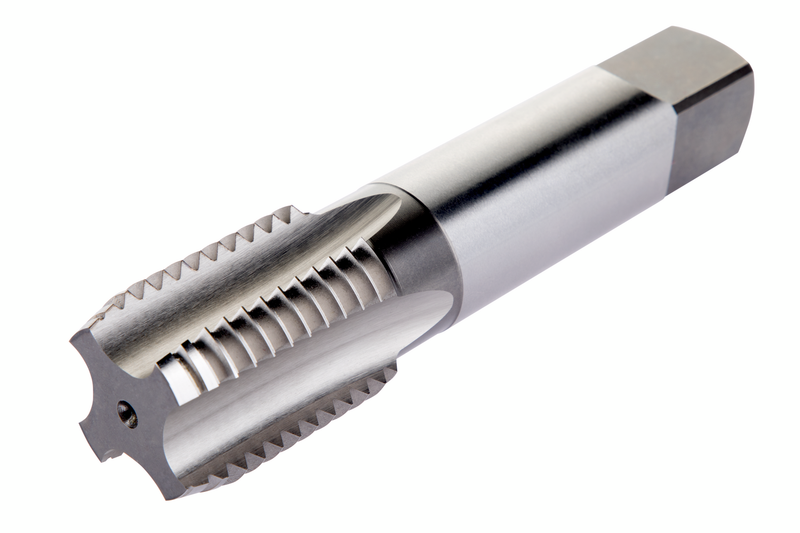

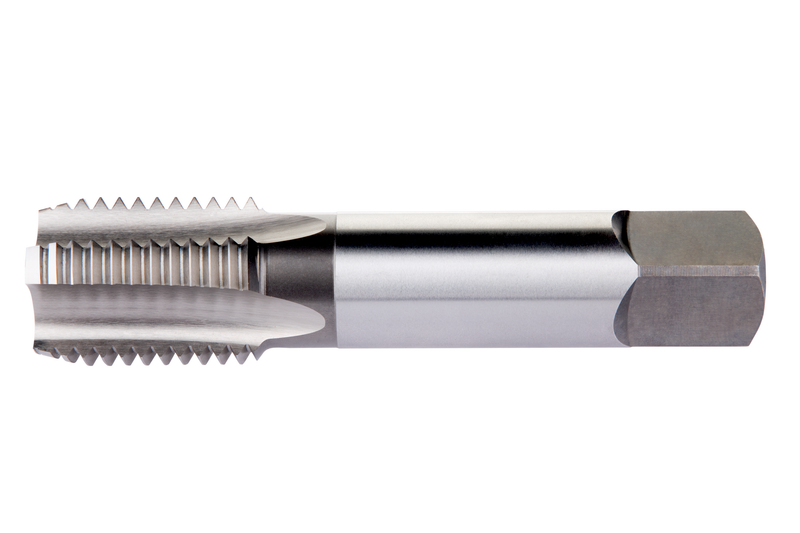

Taraud de finition ébauche, 1.5/8-8 UN H6, HSS finition brillante selon la norme ANSI pour aciers alliés, aciers au carbone de moyenne teneur et de moyenne résistance

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0611.5/8X8H6NO3
Product Number8764952
Product FamilyE061NO3(8UN)
Dimensions
Overall Length — in (OAL)6.6875"
Overall Length — mm (OAL)169.86 mm
Usable Length — in (LU)2.913"
Usable Length — mm (LU)74.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)33.15 mm
Number of Flutes (NOF)6
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8764952
EAN3603607199800
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E0611.5/8X8H6NO3 — Line Drawing PDF Download
