E061M12NON1
E061M12NON1

E061M12NON1

UGC DOR8764965
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.49 CAD - $29.49 CAD
$29.49 CAD
$29.49 CAD - $29.49 CAD
$29.49 CAD

Vendu en lots de : 1

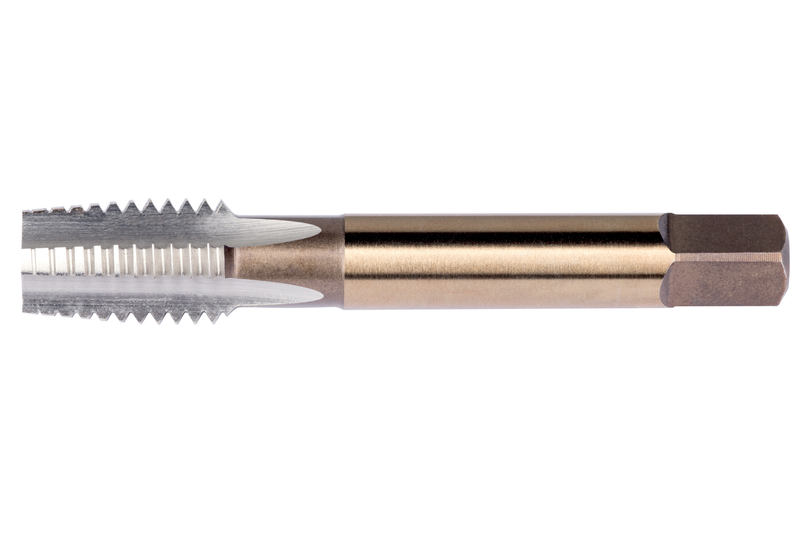

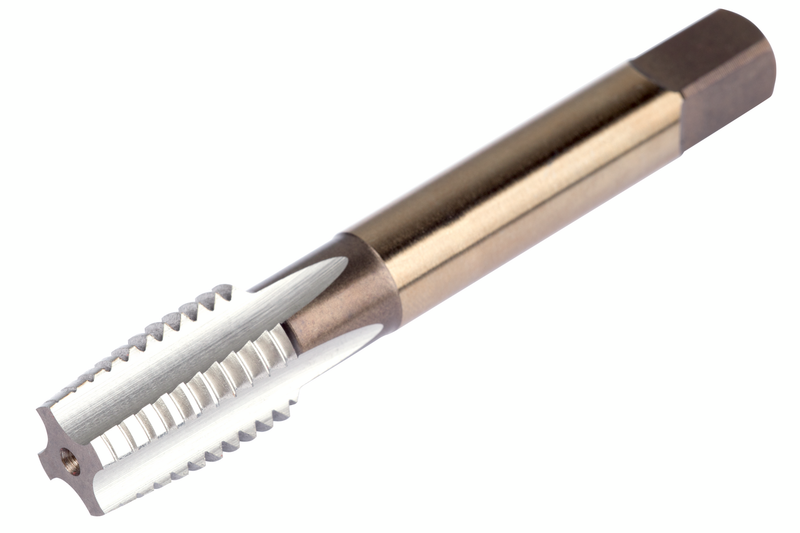

Taraud de finition, M12x1.75 mm D6, HSS finition brillante selon la norme ANSI pour acier au carbone et allié de résistance moyenne

For more information about this product, click here

Identification
Ordering Code (ANSI)E061M12NO1
Product Name (ISO)E061M12NONO
Product Number8764965
Product FamilyE061NO1(M)
Dimensions
Overall Length — in (OAL)3.375"
Overall Length — mm (OAL)85.73 mm
Usable Length — in (LU)1.378"
Usable Length — mm (LU)35.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)9.32 mm
Number of Flutes (NOF)3
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8764965
EAN3603607199930
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E061M12NON1 — Line Drawing PDF Download
