E061M18NO1
E061M18NO1

E061M18NO1

UGC DOR8764968
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$75.89 CAD - $75.89 CAD
$75.89 CAD
$75.89 CAD - $75.89 CAD
$75.89 CAD

Vendu en lots de : 1

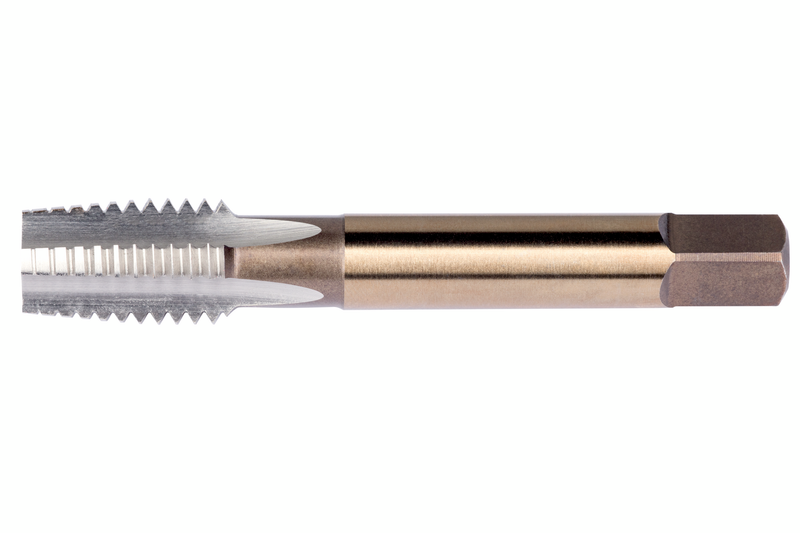

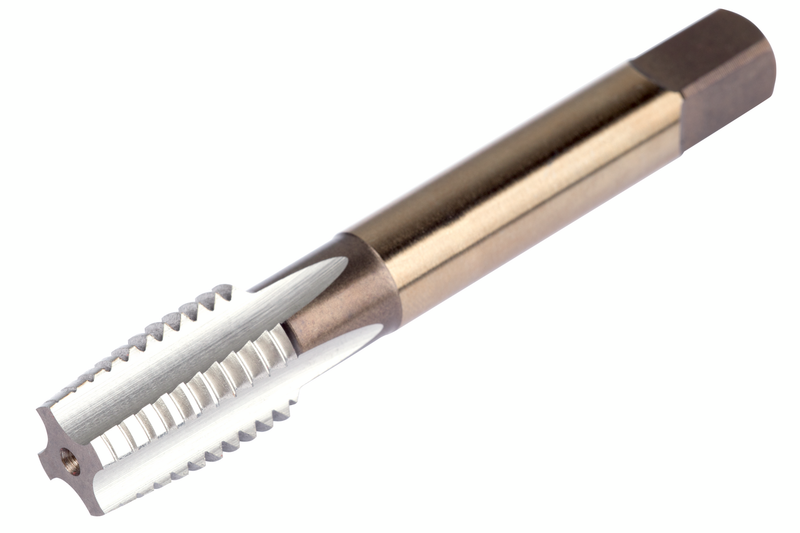

Taraud d'approche machine, M18x2.50 mm D7, finition brillante HSS selon la norme ANSI pour acier à moyenne résistance, acier mi-doux et acier allié

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E061M18NO1
Product Number8764968
Product FamilyE061NO1(M)
Dimensions
Overall Length — in (OAL)4.0313"
Overall Length — mm (OAL)102.39 mm
Usable Length — in (LU)2.008"
Usable Length — mm (LU)51.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)13.77 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8764968
EAN3603607199961
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E061M18NO1 — Line Drawing PDF Download
