E061M20NON
E061M20NON

E061M20NON

UGC DOR8764969
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$100.57 CAD - $100.57 CAD
$100.57 CAD
$100.57 CAD - $100.57 CAD
$100.57 CAD

Vendu en lots de : 1

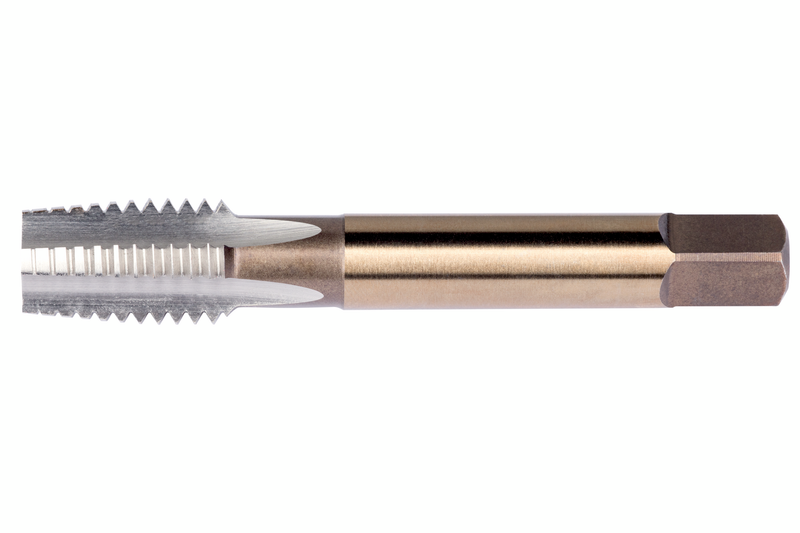

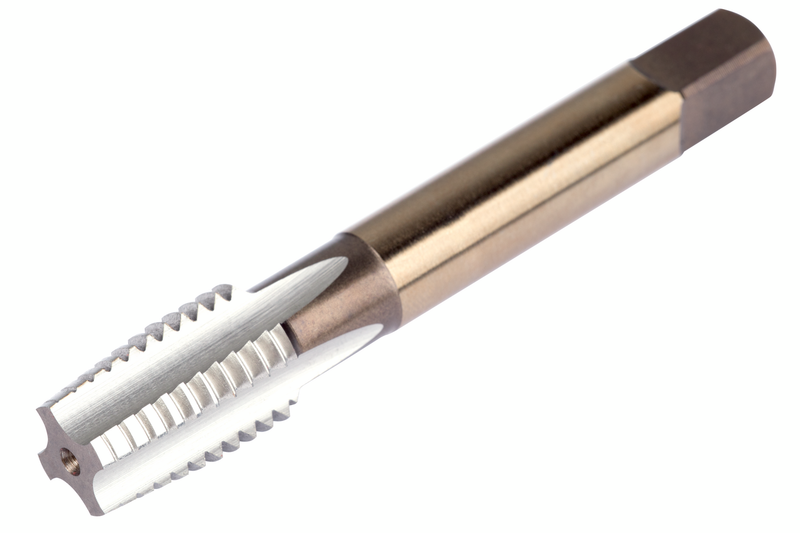

Taraud conique, filetage M20x2.50 mm D7, finition brillante HSS selon la norme ANSI pour acier à moyenne résistance, à teneur moyenne en carbone et allié

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E061M20NO1
Product Number8764969
Product FamilyE061NO1(M)
Dimensions
Overall Length — in (OAL)4.4688"
Overall Length — mm (OAL)113.51 mm
Usable Length — in (LU)1.969"
Usable Length — mm (LU)50.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)16.56 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8764969
EAN3603607199978
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E061M20NON — Line Drawing PDF Download
