E061M7NO2
E061M7NO2

E061M7NO2

UGC DOR8764979
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.41 CAD - $13.41 CAD
$13.41 CAD
$13.41 CAD - $13.41 CAD
$13.41 CAD

Vendu en lots de : 1

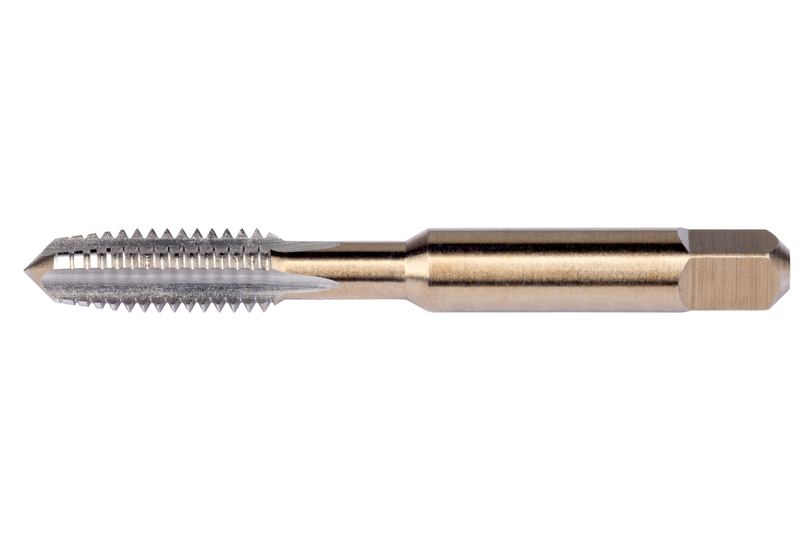

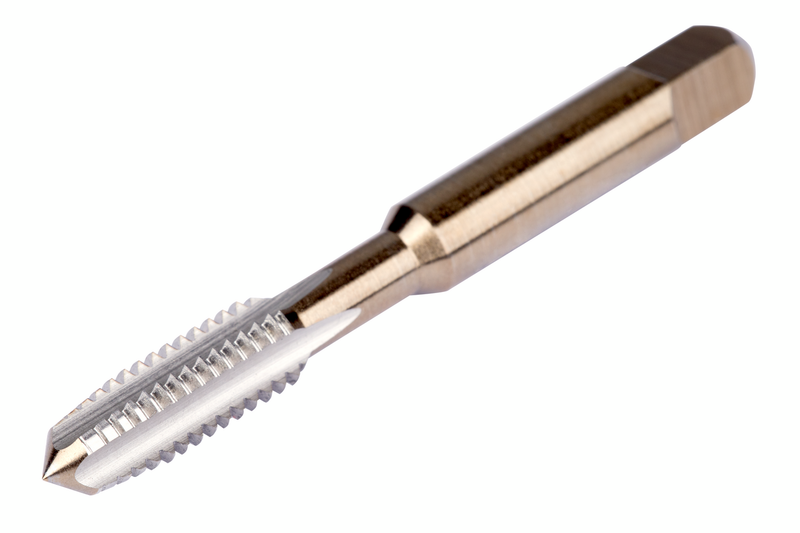

Taraud main d'entrée, M7x1.00 mm D5, HSS finition brillante selon la norme ANSI pour acier au carbone, allié et de résistance moyenne

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E061M7NO2
Product Number8764979
Product FamilyE061NO2(M)
Dimensions
Overall Length — in (OAL)2.7188"
Overall Length — mm (OAL)69.06 mm
Usable Length — in (LU)1.343"
Usable Length — mm (LU)34.1 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)8.08 mm
Number of Flutes (NOF)3
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8764979
EAN3603607200070
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E061M7NO2 — Line Drawing PDF Download
