E061M18NO2
E061M18NO2

E061M18NO2

UGC DOR8764985
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$73.60 CAD - $73.60 CAD
$73.60 CAD
$73.60 CAD - $73.60 CAD
$73.60 CAD

Vendu en lots de : 1

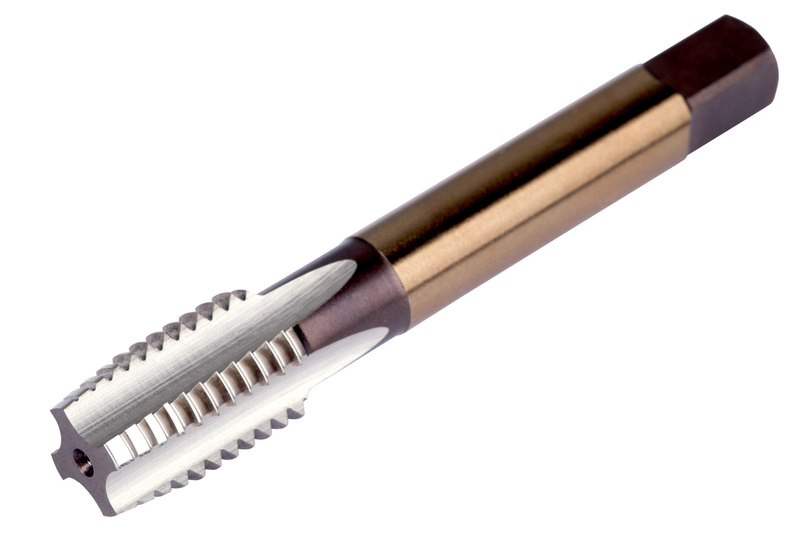

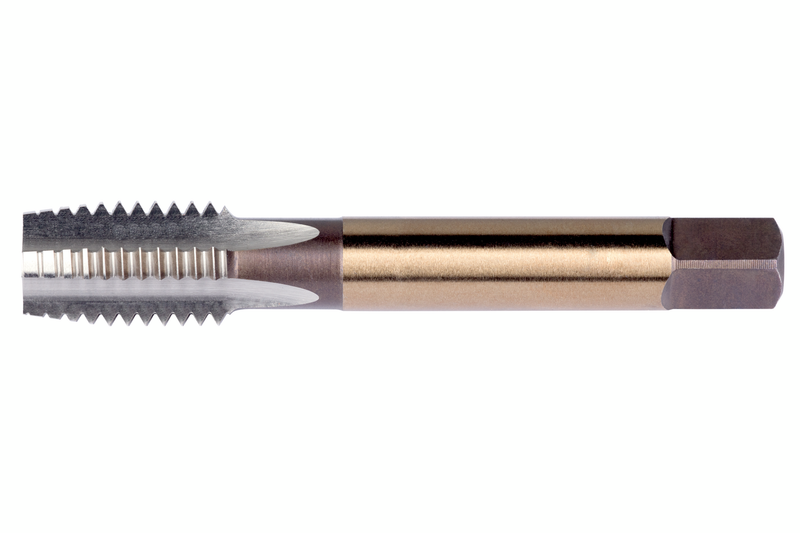

Taraud main en HSS M18x2,50 mm, chanfrein forme B (entrée), finition brillante selon norme ANSI pour aciers mi-durs, aciers au carbone mi-durs et aciers alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E061M18NO2
Product Number8764985
Product FamilyE061NO2(M)
Dimensions
Overall Length — in (OAL)4.0313"
Overall Length — mm (OAL)102.39 mm
Usable Length — in (LU)2.008"
Usable Length — mm (LU)51.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)13.77 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8764985
EAN3603607200131
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E061M18NO2 — Line Drawing PDF Download
