E061M24NO2
E061M24NO2

E061M24NO2

UGC DOR8764988
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$133.03 CAD - $133.03 CAD
$133.03 CAD
$133.03 CAD - $133.03 CAD
$133.03 CAD

Vendu en lots de : 1

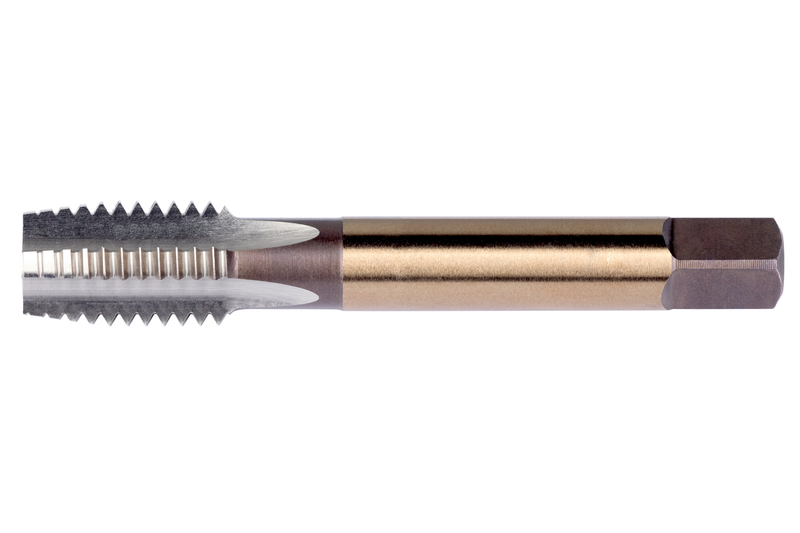

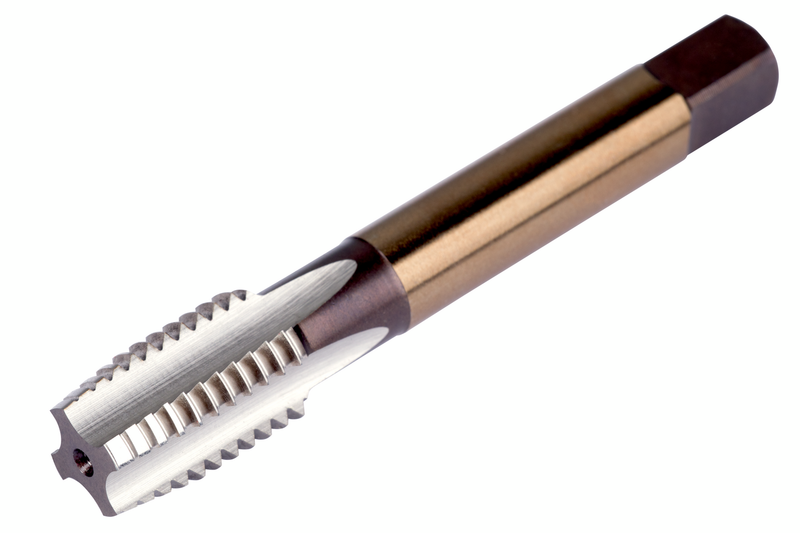

Taraud main d'ébauche, M24x3,00 mm D8, HSS finition brillante selon la norme ANSI pour les aciers à moyenne résistance, à teneur moyenne en carbone et alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E061M24NO2
Product Number8764988
Product FamilyE061NO2(M)
Dimensions
Overall Length — in (OAL)4.9063"
Overall Length — mm (OAL)124.62 mm
Usable Length — in (LU)2.165"
Usable Length — mm (LU)55.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)19.3 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8764988
EAN3603607200162
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage possible
N — Non-Ferrous Metals Usage possible
File Type Download
E061M24NO2 — Line Drawing PDF Download
