E061M20NO6
E061M20NO6

E061M20NO6

UGC DOR8765020
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$301.26 CAD - $301.26 CAD
$301.26 CAD
$301.26 CAD - $301.26 CAD
$301.26 CAD

Vendu en lots de : 1

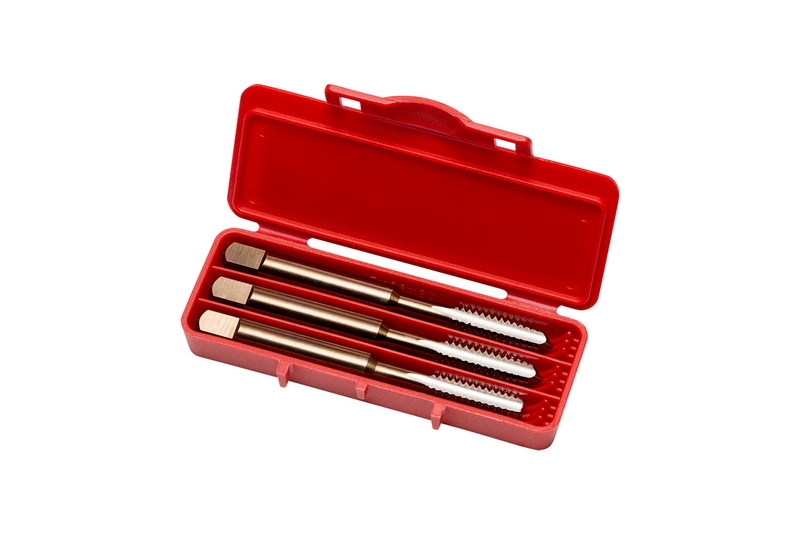

Jeu de 3 tarauds à main à entrée conique, intermédiaire et semi-finition, M20x2,50 mm D7, finition brillante HSS selon la norme ANSI pour acier de résistance moyenne, aciers au carbone et aciers alliés de résistance moyenne

For more information about this product, click here

Identification
Ordering Code (ANSI)E061M20NON6
Product Name (ISO)E061M20NO6
Product Number8765020
Product FamilyE061NO6(M)
Dimensions
Overall Length — in (OAL)4.4688"
Overall Length — mm (OAL)113.51 mm
Usable Length — in (LU)1.969"
Usable Length — mm (LU)50.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)16.56 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8765020
EAN3603607200483
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E061M20NO6 — Line Drawing PDF Download
