E061M10X1.25NON1
E061M10X1.25NON1

E061M10X1.25NON1

UGC DOR8765022
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.96 CAD - $24.96 CAD
$24.96 CAD
$24.96 CAD - $24.96 CAD
$24.96 CAD

Vendu en lots de : 1

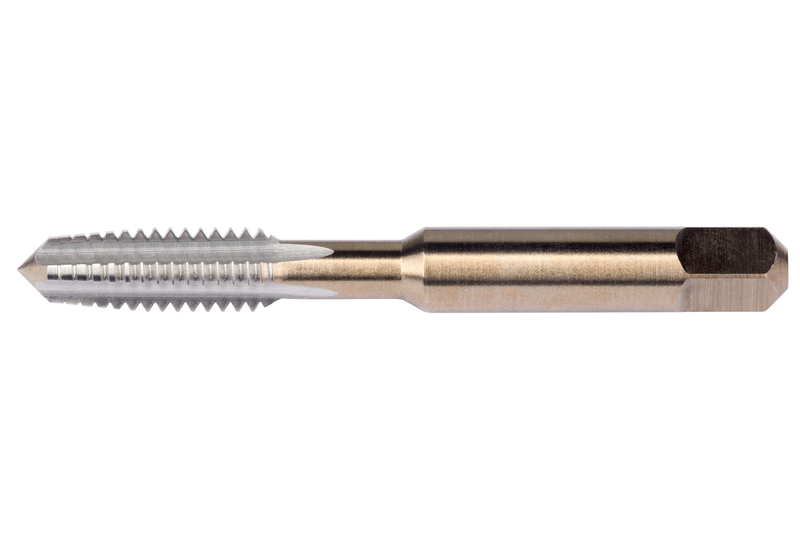

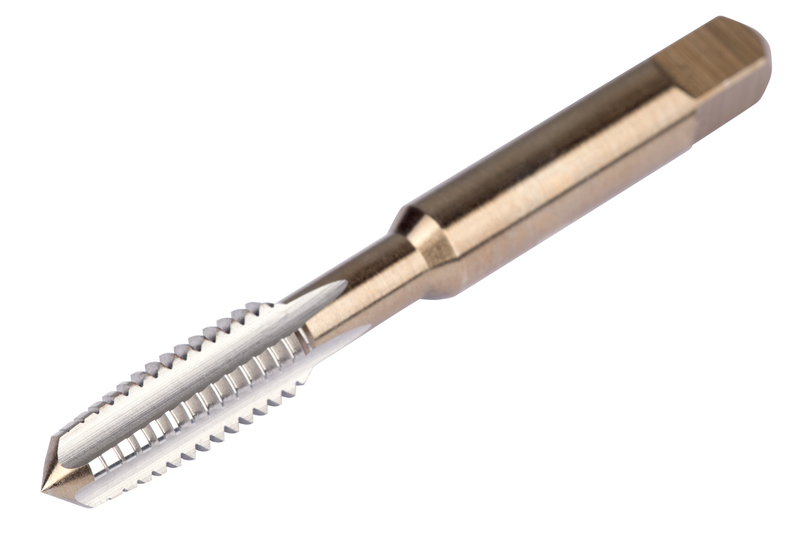

Taraud conique, M10x1,25 mm D5, finition brillante HSS selon la norme ANSI pour les aciers à moyenne résistance, à carbone moyen et alliés

For more information about this product, click here

Identification
Ordering Code (ANSI)E061M10X1.25NON1
Product Name (ISO)E061M10X1.25NO1
Product Number8765022
Product FamilyE061NO1(MF)
Dimensions
Overall Length — in (OAL)2.9375"
Overall Length — mm (OAL)74.61 mm
Usable Length — in (LU)1.472"
Usable Length — mm (LU)37.4 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)9.68 mm
Number of Flutes (NOF)3
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8765022
EAN3603607200506
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E061M10X1.25NON1 — Line Drawing PDF Download
