E061M18X1.5D6NO1
E061M18X1.5D6NO1

E061M18X1.5D6NO1

UGC DOR8765026
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$73.60 CAD - $73.60 CAD
$73.60 CAD
$73.60 CAD - $73.60 CAD
$73.60 CAD

Vendu en lots de : 1

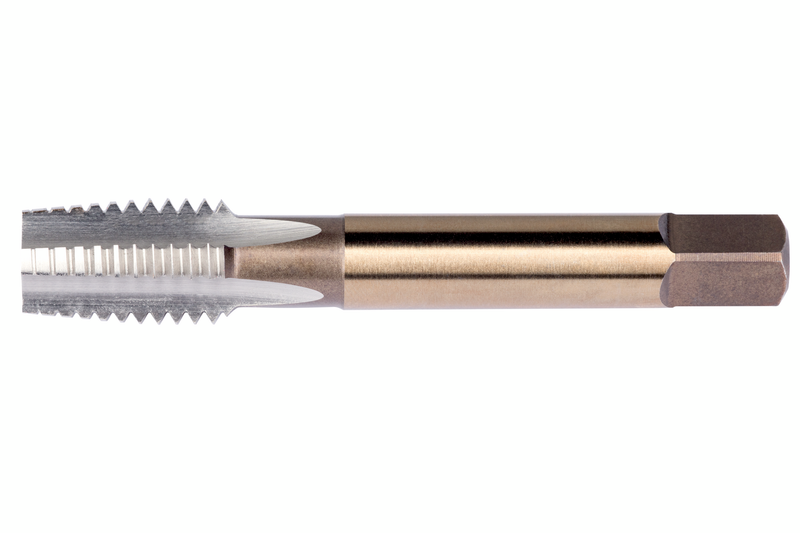

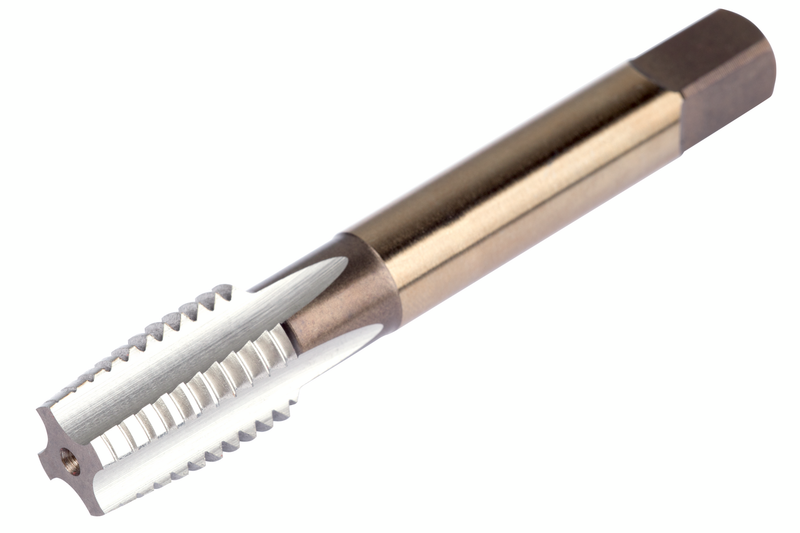

Taraud conique, filetage M18x1,50 mm D6, HSS finition brillante selon la norme ANSI pour acier allié, au carbone et de résistance moyenne

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E061M18X1.5D6NO1
Product Number8765026
Product FamilyE061NO1(MF)
Dimensions
Overall Length — in (OAL)4.0313"
Overall Length — mm (OAL)102.39 mm
Usable Length — in (LU)2.008"
Usable Length — mm (LU)51.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)13.77 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8765026
EAN3603607200544
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage possible
File Type Download
E061M18X1.5D6NO1 — Line Drawing PDF Download
